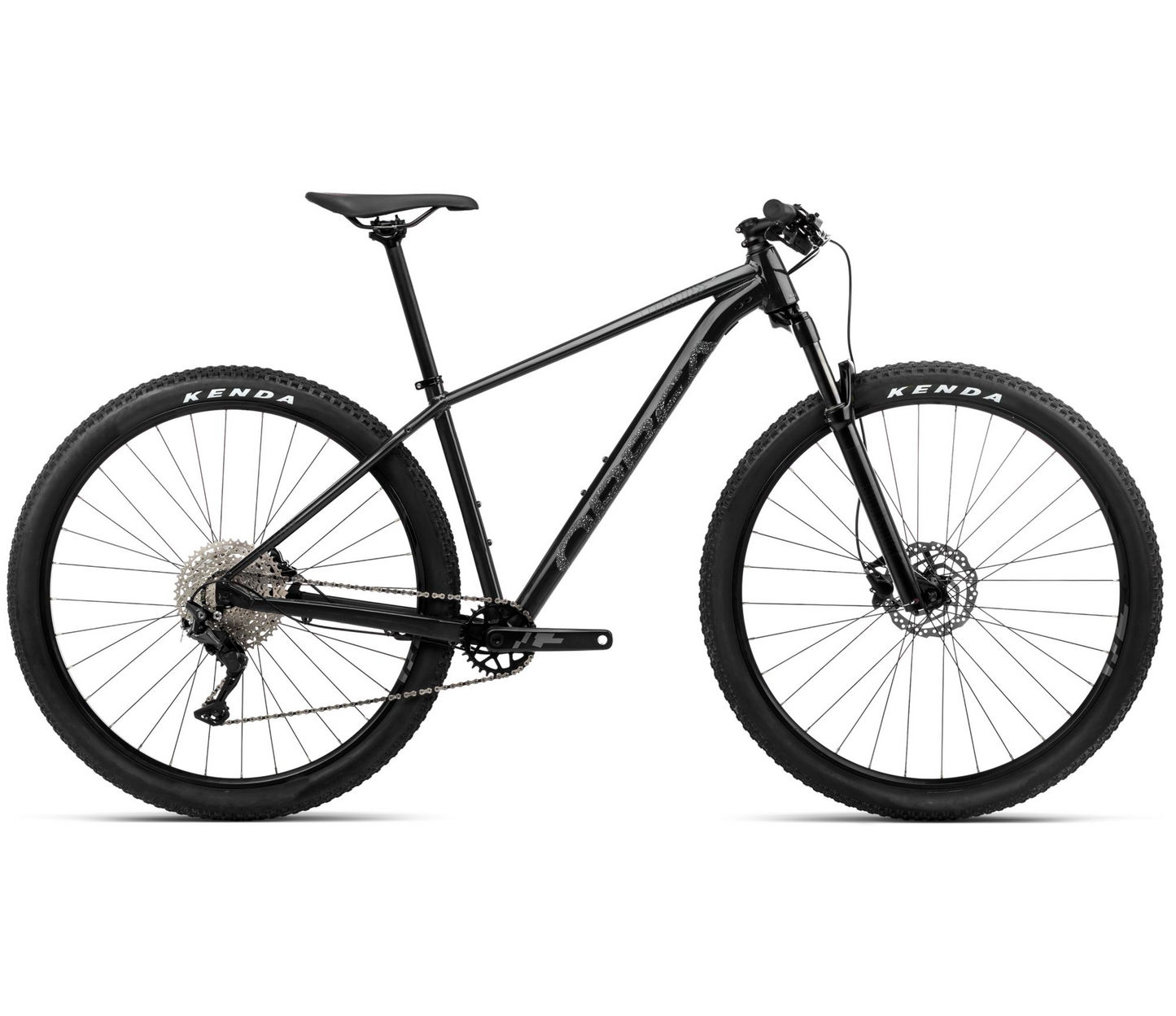

DESCRIPTION

A lifetime of mountain biking begins with a first – An initial curiosity, a spark of adventure, the inkling that there is much to discover under the branches of towering pines or among painted desert spires. After uncertain early pedal strokes comes an efficiency of motion and mind that changes the synapses of your brain forever. Strength arrives, discomfort departs, clarity comes even if only for the moment. A lifetime of mountain biking starts here.

ONNA MEANS COMFORT AND CONTROL

We designed the Onna for the rider who wants to conquer the trail. A bike geometry that maximizes efficiency and control is perfect for any rider who is learning to love MTB.

BALANCED HANDLING

Onna boasts balanced geometry with perfect trail manners to maximize the fun for all riders. Add wheel sizes matched to frame size give perfect fit for all riders and the Onna is ready for the trail ahead.

KEY FEATURES

READY FOR THE TRAIL

With tapered headtube to give a wide choice of 100mm suspension forks, hydraulic disc brakes across all the range and 1x Shimano drivetrain on top models, Onna is equipped for the ride. With plenty of room for wide mountain bike tyres for comfort and grip, Onna isn´t going to limit your adventures.

DROPPER POST READY

Onna is fully compatible with internally routed 27.2mm dropper posts, so you will be ready for whatever trails the future holds.

HYDRAULIC DISC BRAKES

Post mount 160mm hydraulic disc brakes on every Onna.

THREADED BOTTOM BRACKET

Threaded bottom brackets offer low maintenance are easily replaceable by the home mechanic.

TAPERED HEADTUBE

A tapered headtube and fork steerer put strength and rigidity where they’re needed while trimming weight with alloy steerer tubes and offering a wider selection of quality forks.

QUICK RELEASE AXLES

Onna comes with QR axles as standard.

INTERNAL CABLE ROUTING

Internal Cable Routing is carefully guided along the best path behind the headtube with no rub or rattle.

RACK MOUNTS

The forged dropouts offer secure mounting points for a wide variety of racks.

KICKSTAND

The left chainstay of the bike has an integrated mounting point for a kickstand.

ADVANCED ALUMINUM FRAME

Onna´s advanced aluminum frame with shaped tubes allows us to fine tune the ride quality. Stiff enough to be fast and responsive, compliant enough to be comfortable and controlled. At Orbea we are proud that the Onna is ready for whatever trails lie ahead.

REGISTER FOR YOUR WARRANTY AND BENEFITS

LIFETIME WARRANTY

We offer a lifetime warranty on your bike frame once the legal warranty period has expired.

ACCIDENT POLICY

If your bike cracks or breaks due to external factors, we’ll provide you with a discount for a similar new frame.

EXCLUSIVE BENEFITS

You get access to exclusive contests and prizes and have priority access to products and promotions.

SPECIFICATIONS

FRAME

Orbea Onna Alloy, Dropout 9x135, BSA BB, Internal cable routing

FORK

SR Suntour XCR Air Lor 100mm QR

DIRECTION

1"-1/2 Semi-Integrated

DRIVETRAIN

CRANKSET

Forged alloy, 32t

SHIFTERS

Shimano Cues SL-U6000

CASSETTE

Shimano CS-LG400 11-50t 11-Speed

REAR DERAILLEUR

Shimano Cues U6000 GS Shadow

CHAIN

KMC eGlide

COCKPIT

HANDLEBAR

Alloy, 31.8mm, Flat, 720mm

STEM

Alloy, 7º

BRAKES

Shimano MT200 Hydraulic Disc

WHEELS

Alloy, 23c, 32H

TYRES

Kenda Booster 2.40" 30TPI

ACCESSORIES

PEDALS

VP-537 Black

COMPONENTS

SEATPOST

Alloy, 27.2mm, Setback 0

SADDLE

Fortune QF-3091

SIZE GUIDE

Size	Height (cm)
S	155-170
M	165-180
L	178-190
XL	185-198
