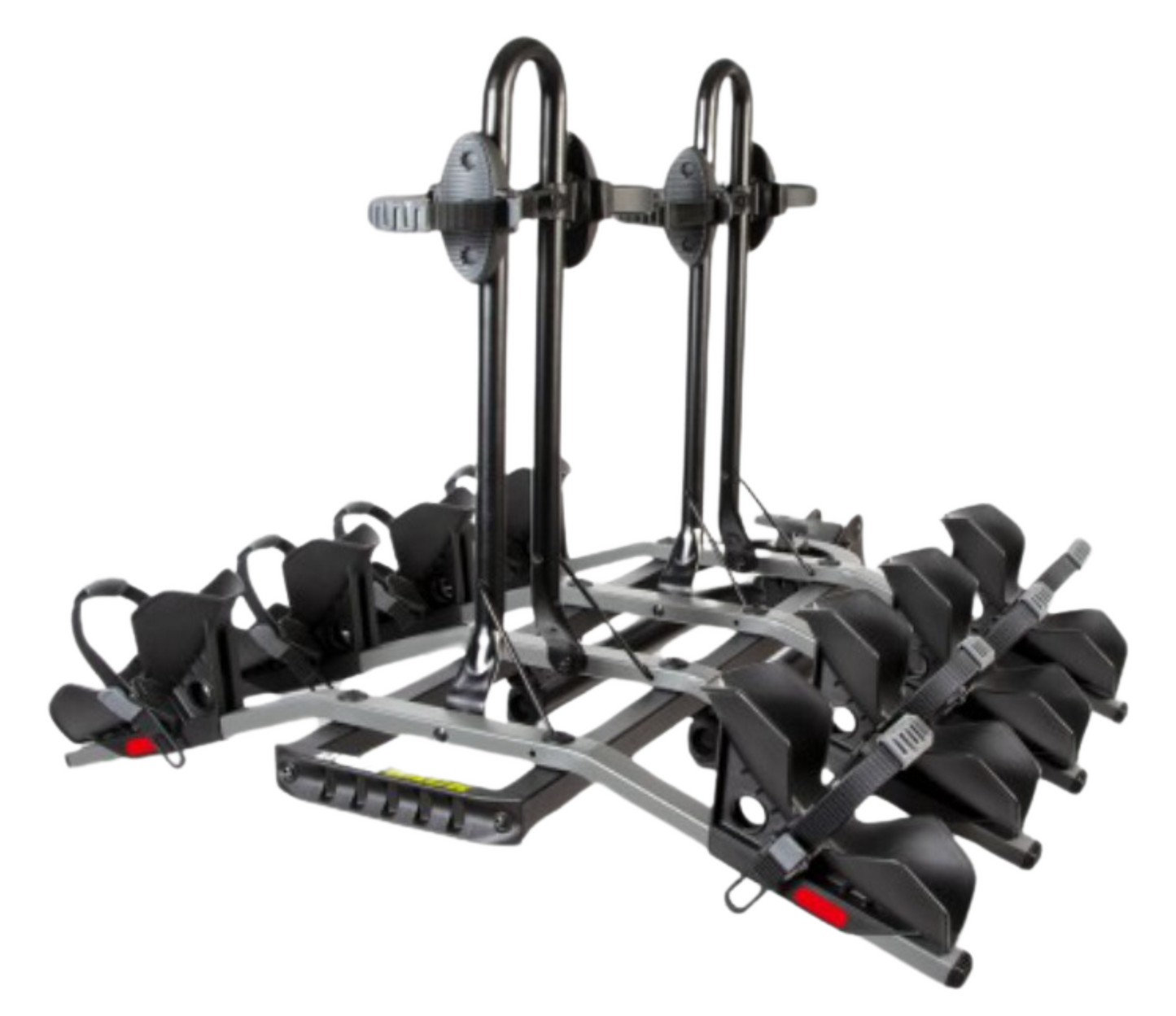

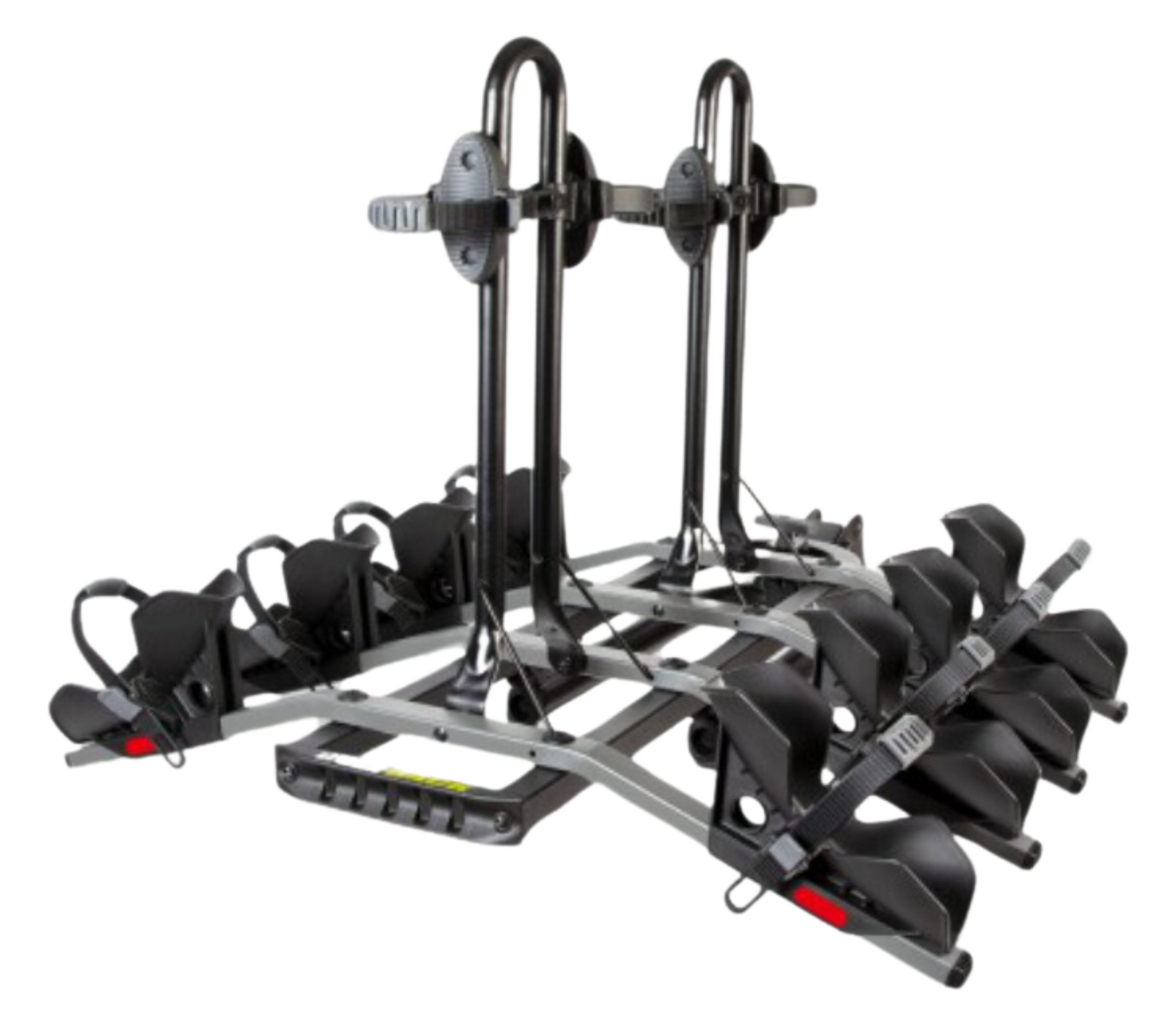

DESCRIPTION
The BUZZRACER H4 offers easy mounting, basic functions, and an easy tilting function. The rubber-padded ratchet cradles provide a great solution for carbon frames, as they do not apply pressure to the carbon tubes.

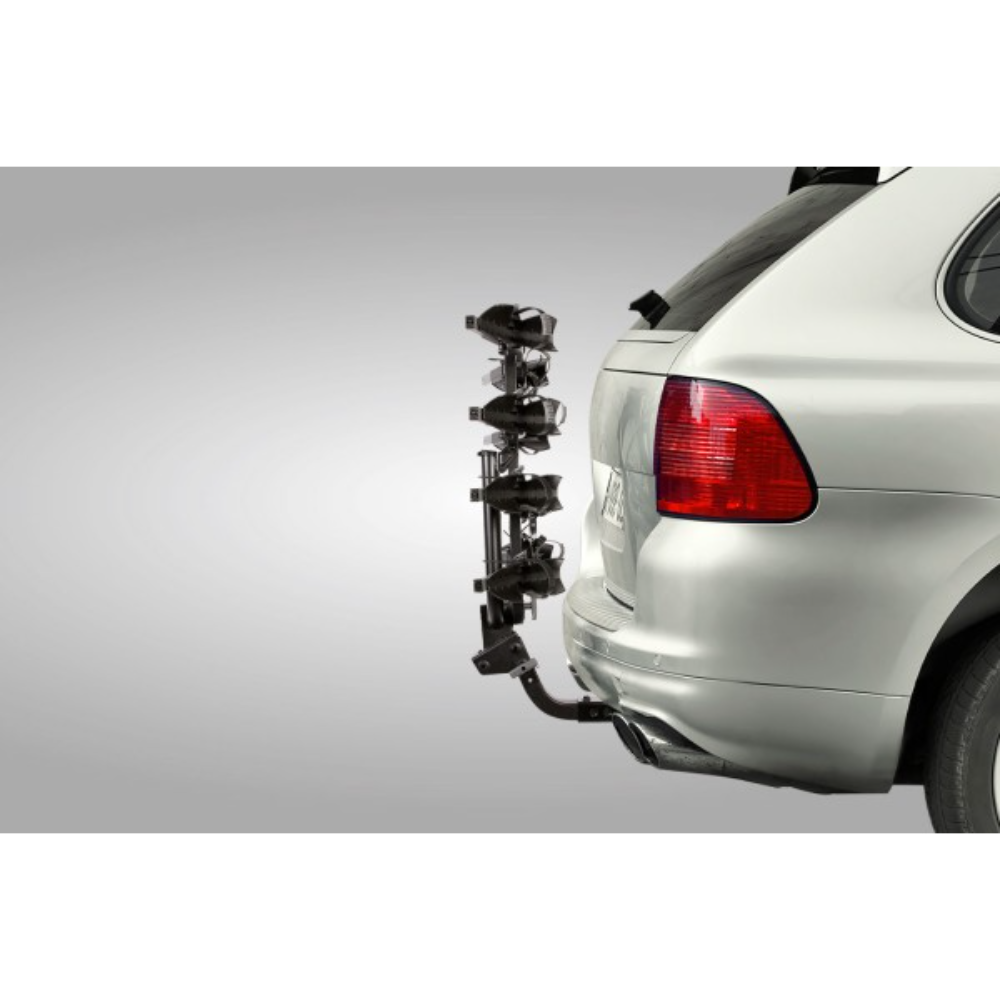

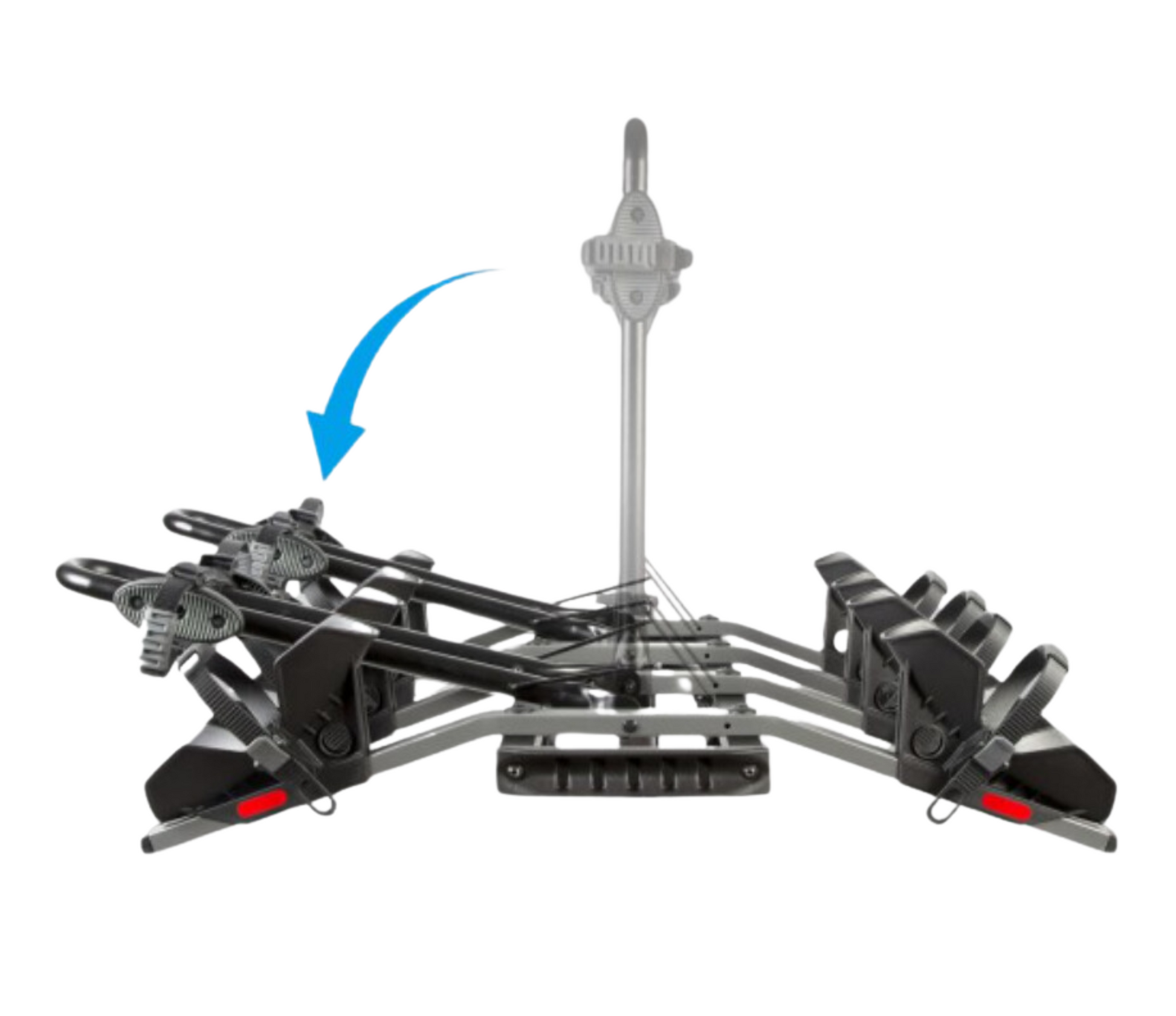

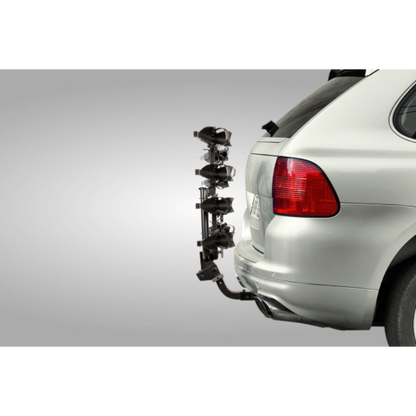

The BUZZRACER H is an improved version of the BUZZYBEE H with its balanced tilting function, ratchet frame holder, and locking features. The rack still folds up when not in use.
GEAR DETAIL
The BUZZRACER H4 is a very simple product with all the main features needed to carry a regular bike: tilting, locking, folding.
BASIC ERGONOMICS

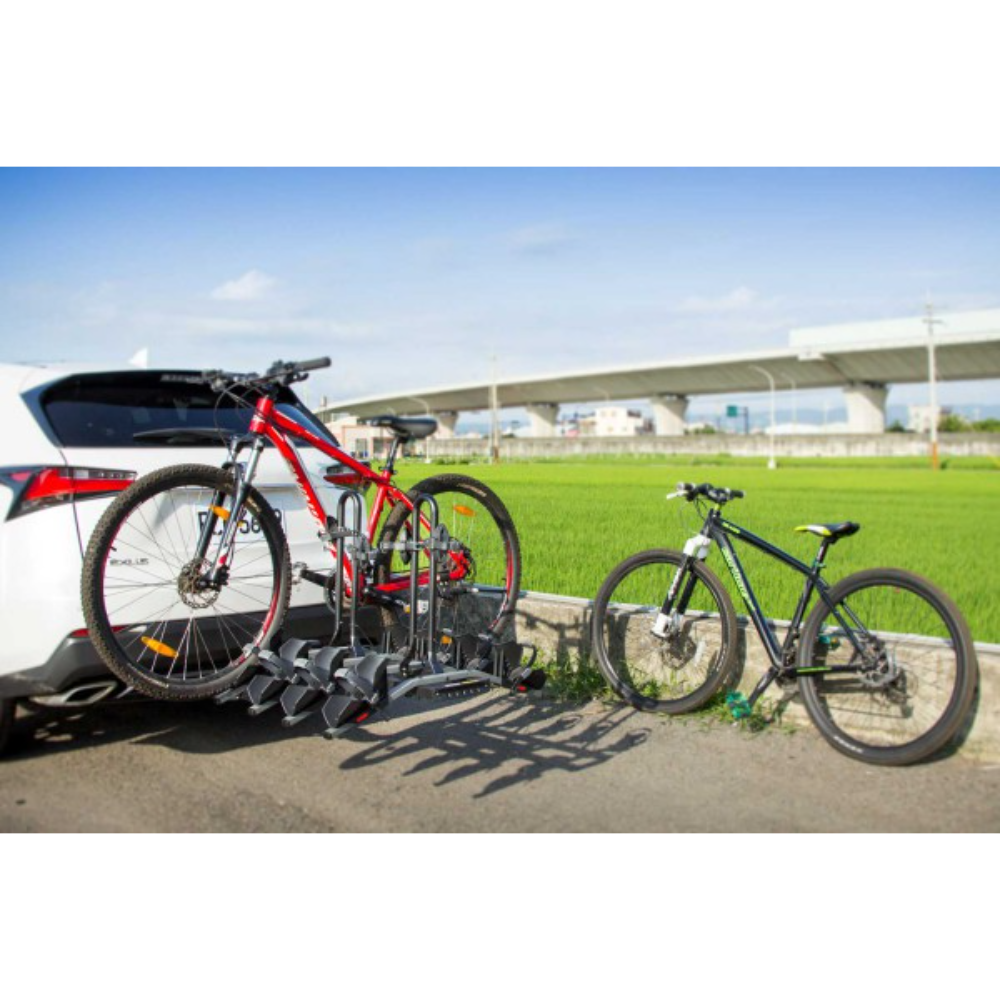

The BUZZRACER H4 is the best solution to carry 4 bikes using a 2″ receiver and maintain easy access to the car trunk.
KEY FEATURES
Assembly: Even though it is not assembled, BUZZRACER H4 is very easy to put together: assemble the wheel support frame to the base using 8 screws, slide in the plastic wheel supports, fit the rack to the 2″ hitch receiver using the supplied wrench, and you are ready to go!
OTHER FEATURES AND SPECIFICATIONS
CARRYING BIKES

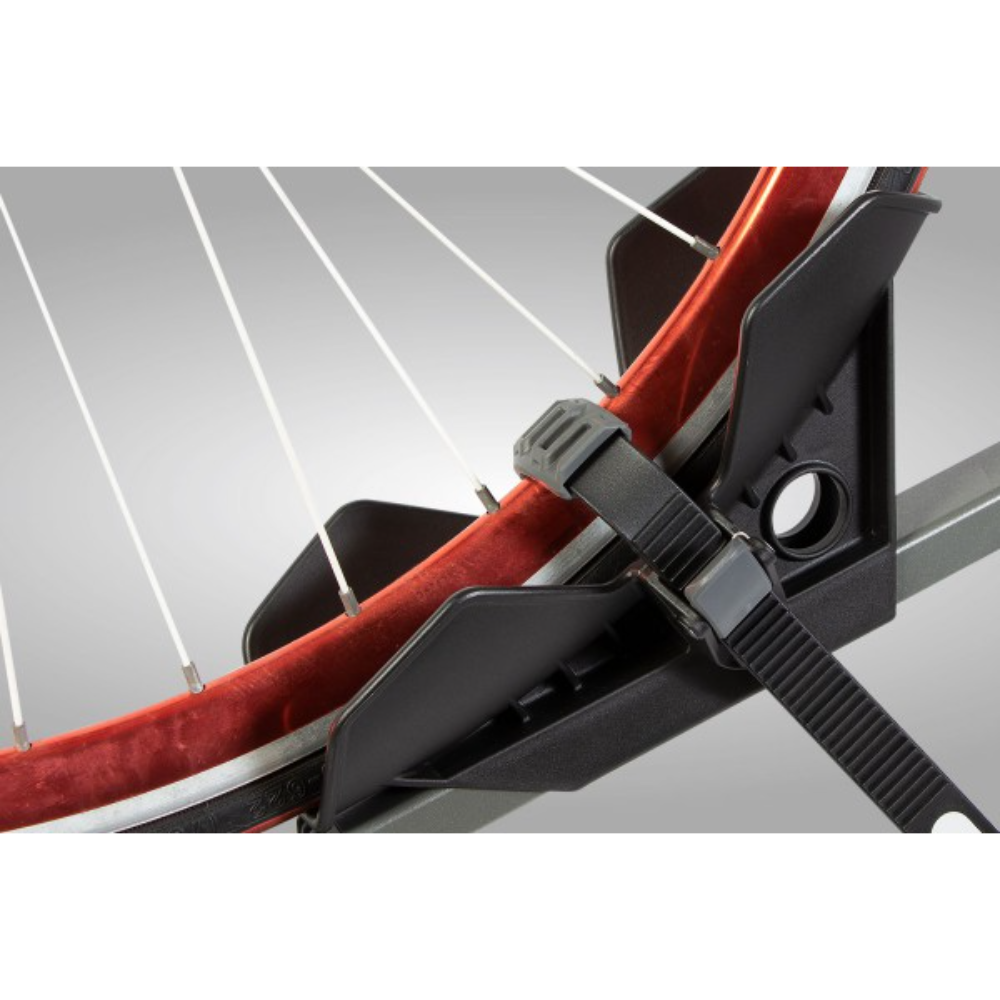

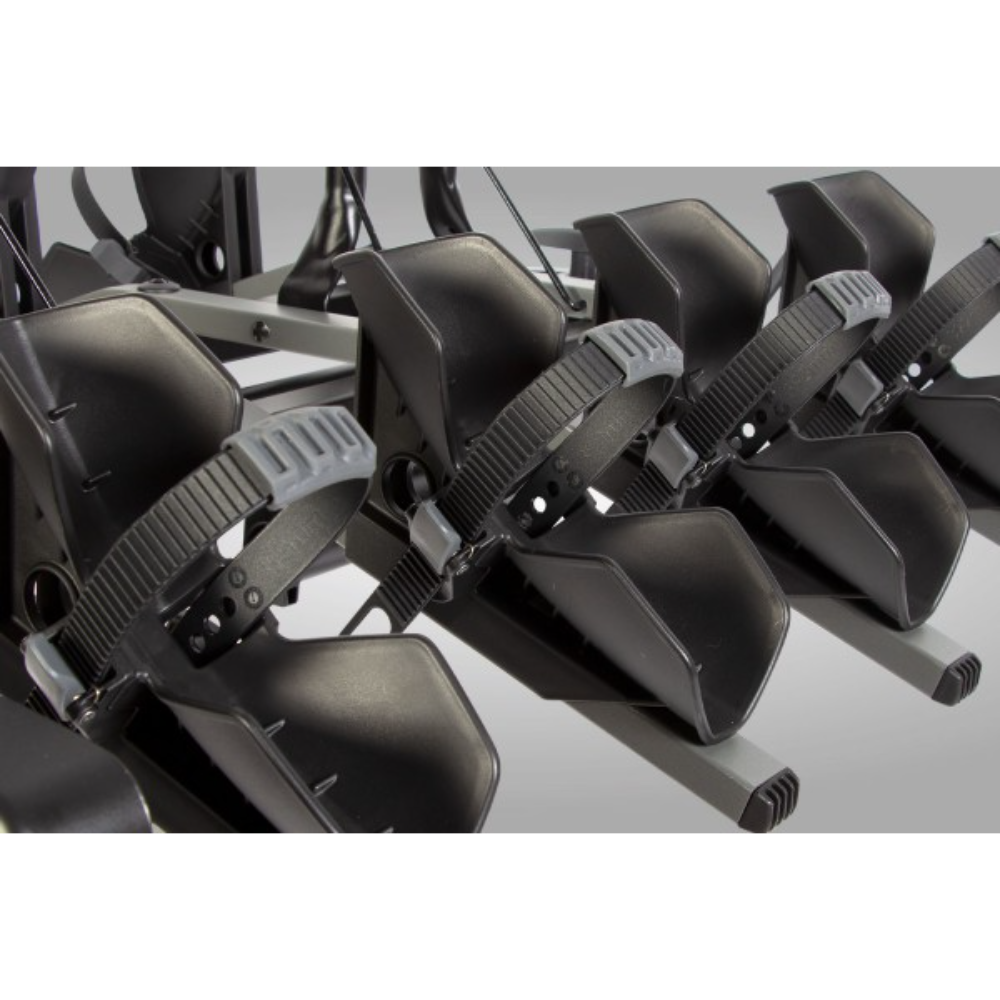

Wheel holders accommodate most wheelbases (not tandem), even small children’s bikes. Check technical data below.

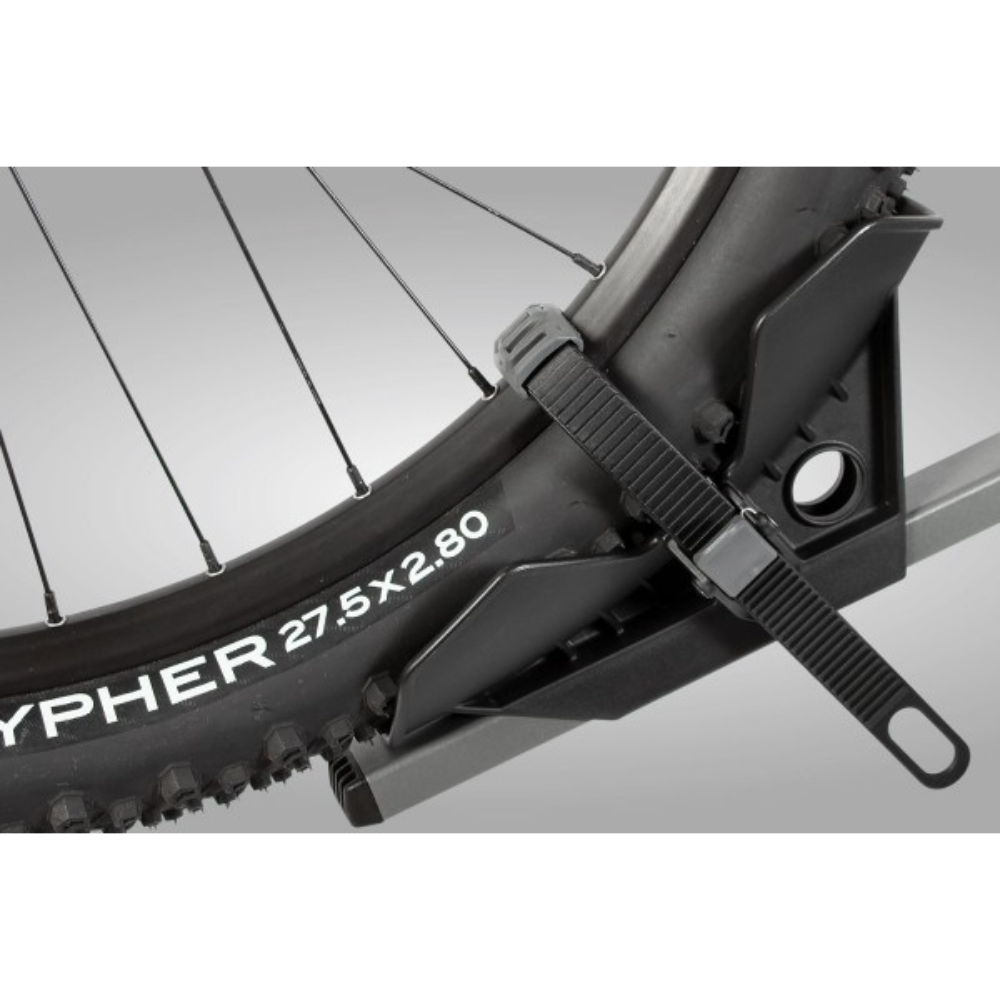

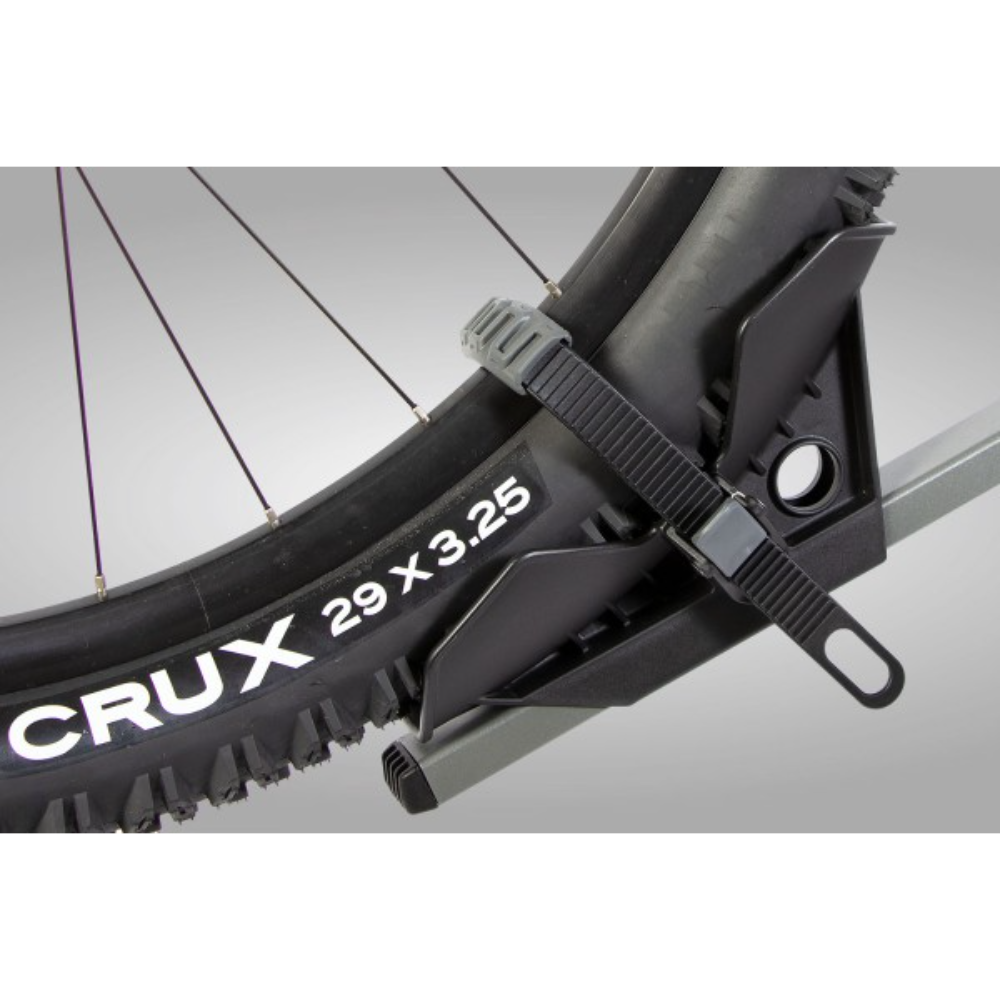

The long rubber-padded wheel straps hold tyres up to 3.25” wide; pull on them to tighten and use the quick release to loosen.

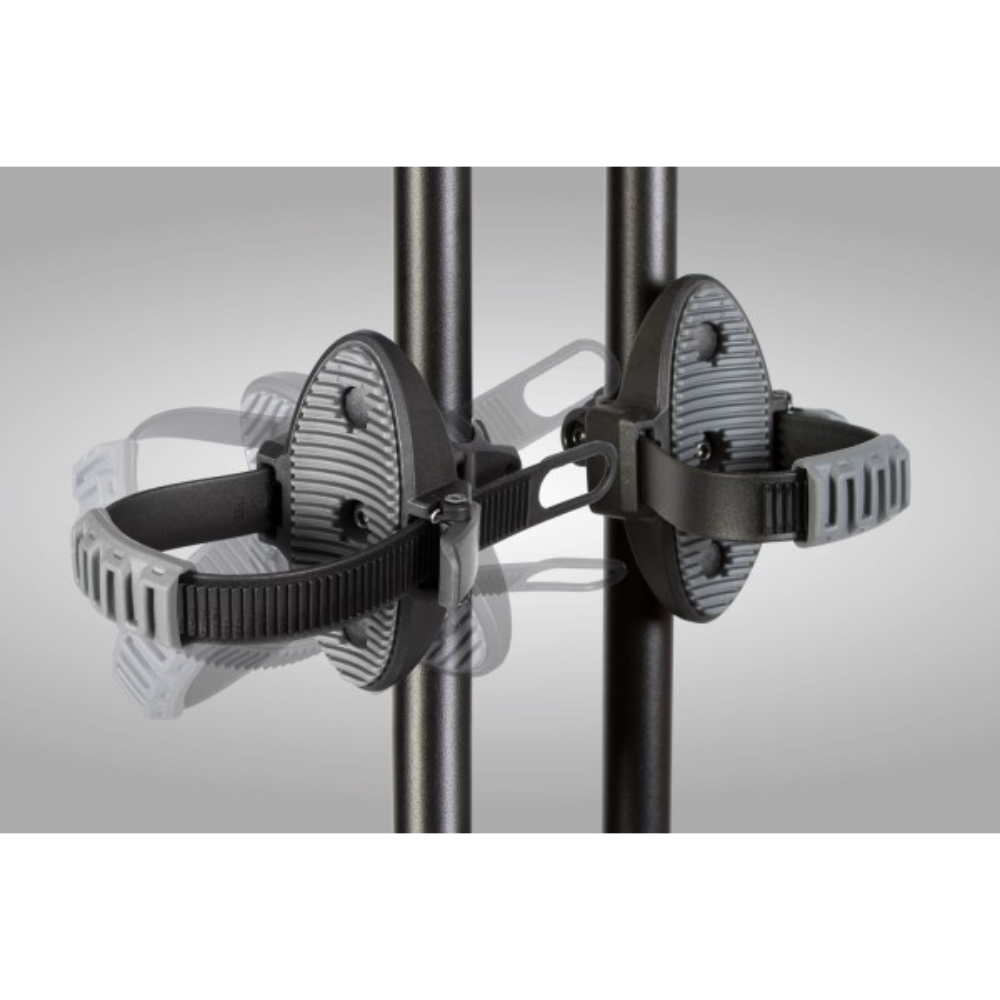

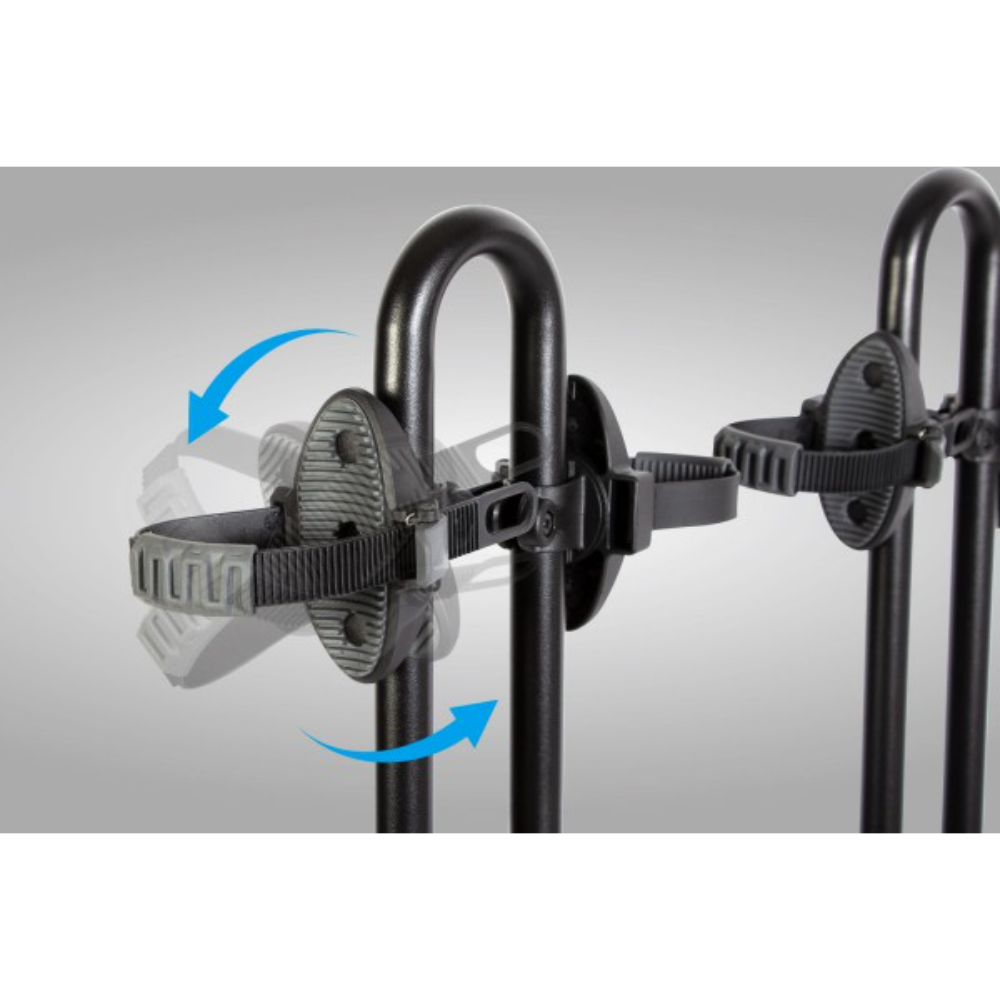

The BUZZRACER H4 is suitable for carbon frame bikes; the rubber-padded bike frame cradles rotate 360 degrees and, using rubber-padded straps, hold any type of tube firmly but gently.
The maximum permitted load is 60kg (132lbs), with no bike weighing more than 20kg (44lbs).
The down tube size is limited to 75mm diameter (3″); always load the heaviest bikes nearest to the car.
There is a built-in locking cable to secure your bikes; as usual with cable locks, it’s a deterrent only.

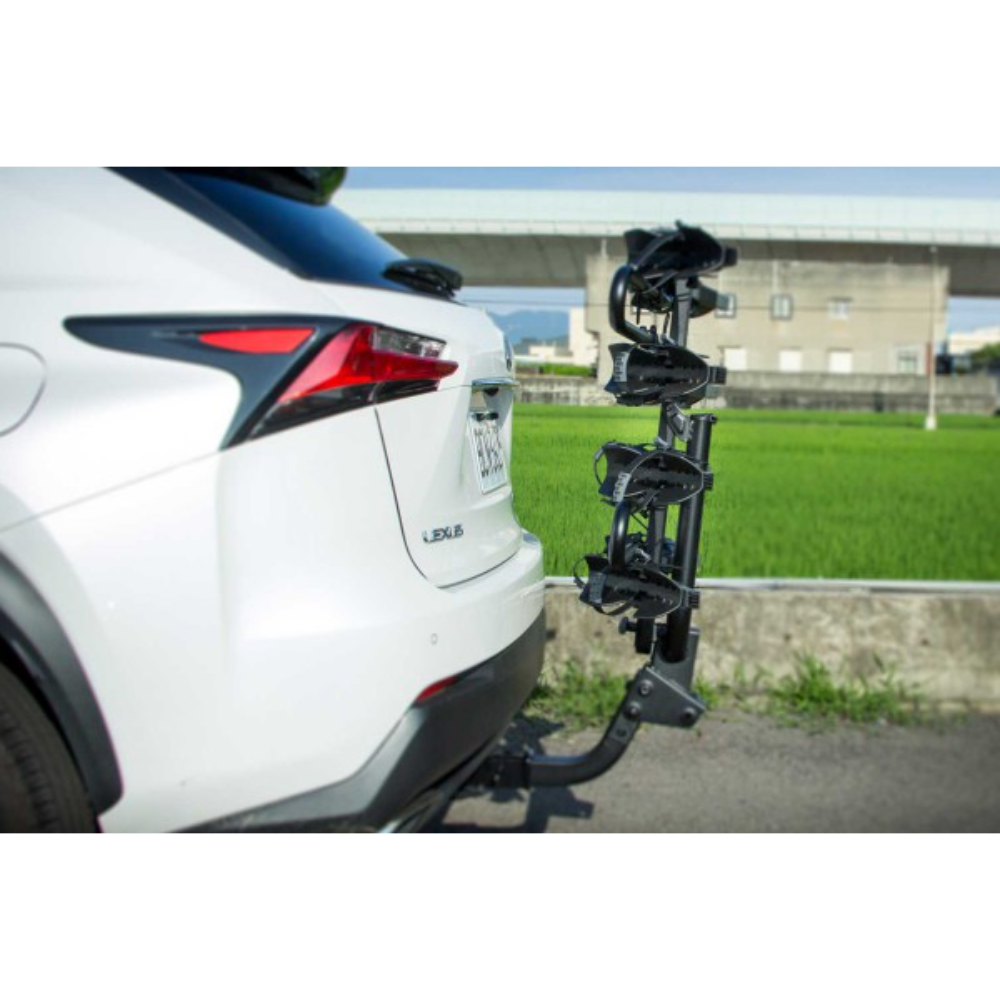

The BUZZRACER H4 sits high on the hitch, well clear of speed bumps and other hazards such as steep ferry ramps.

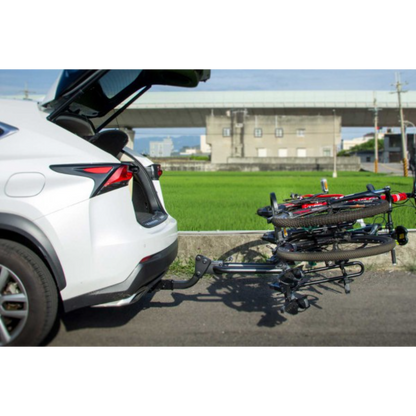

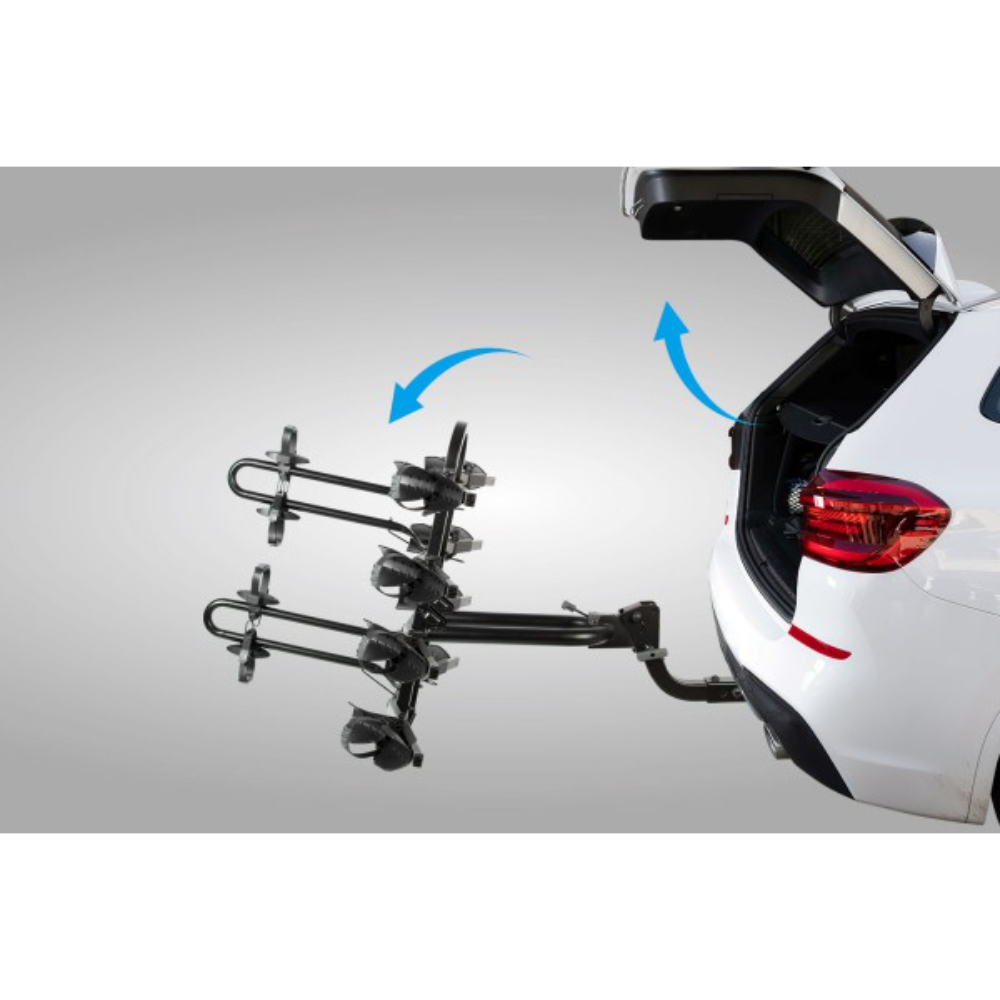

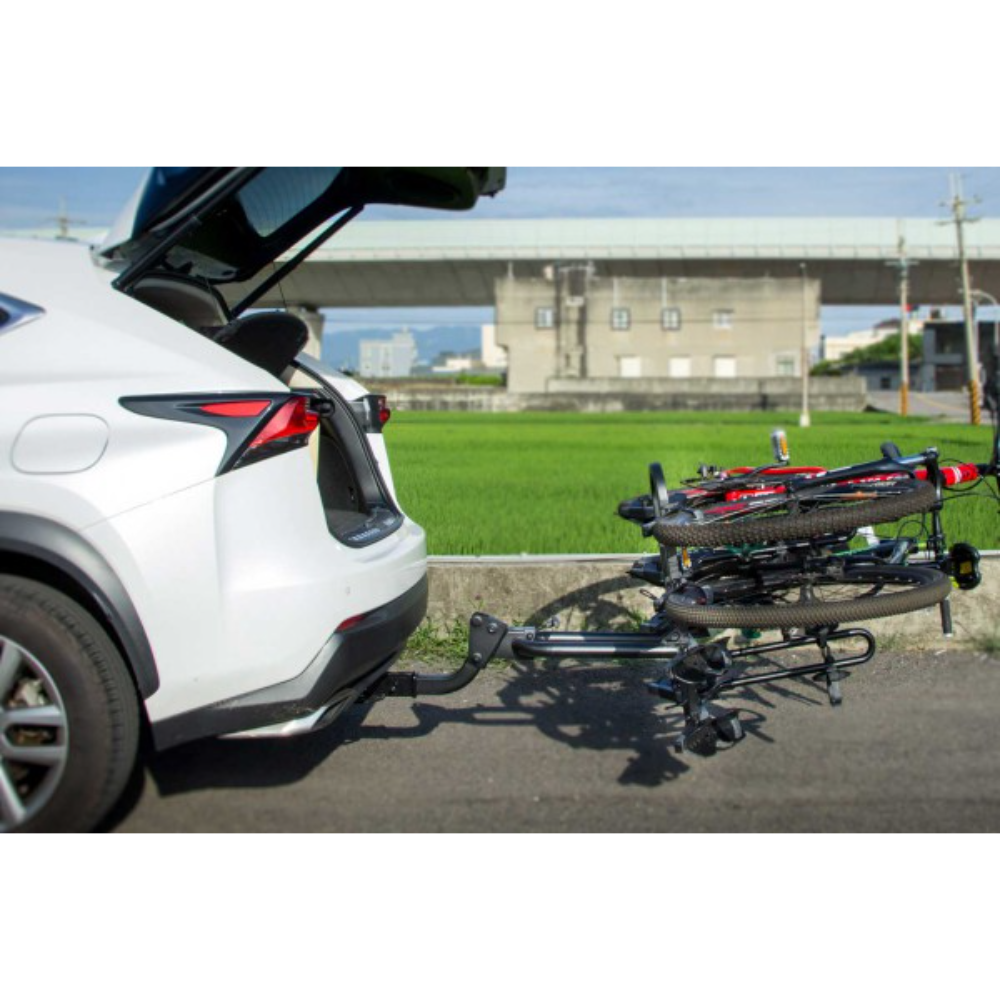

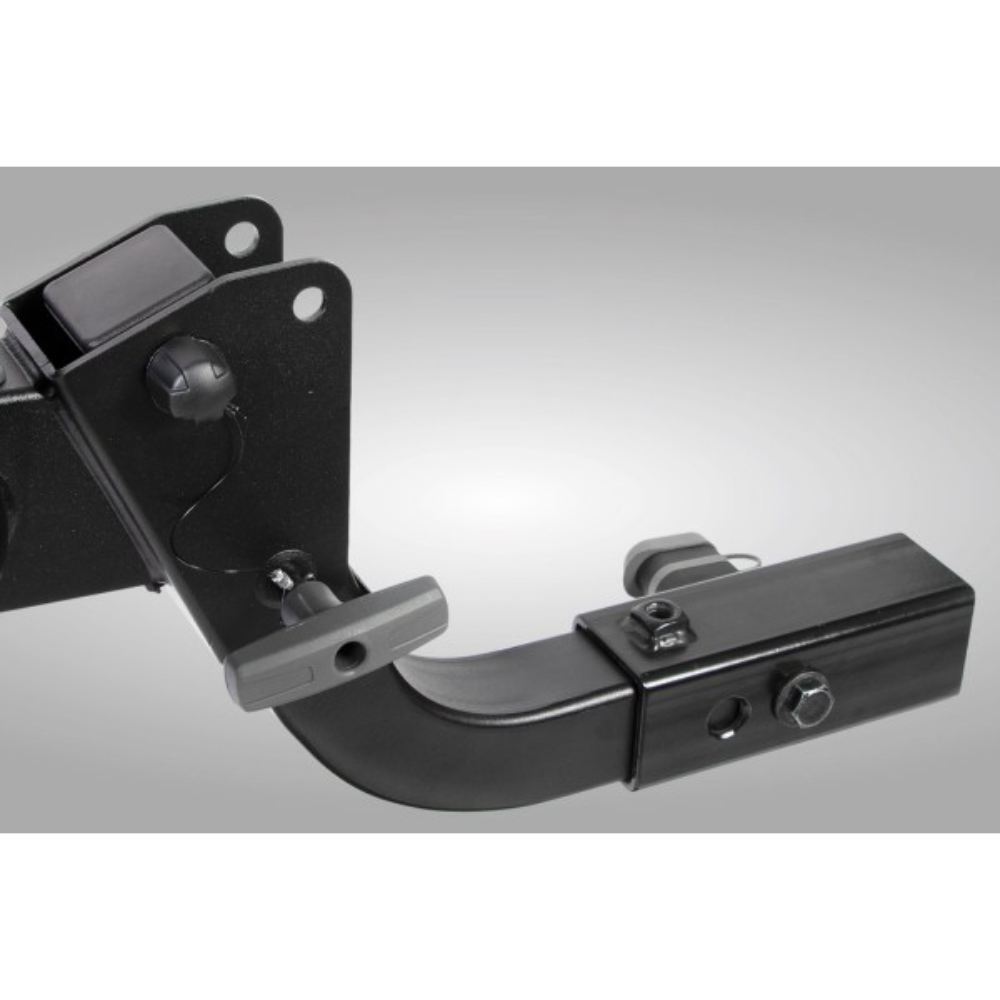

It easily tilts down for trunk access with bikes on.
DIMENSIONS
88cm wide x 83cm deep
WEIGHT
18kg (39.6lbs)
BUILD QUALITY
The build quality – tube bending, welding, rust proofing, painting, component quality – is exemplary. The whole carrier looks and feels like the class act it is. All tools you might need are provided. All parts are replaceable if, for example, someone forgets that a tow bar carrier is fitted and reverses into a wall – which happens!
Not suitable for trailers, campers, or RVs.
FEATURES
- Max weight 60kg
- Allows trunk opening

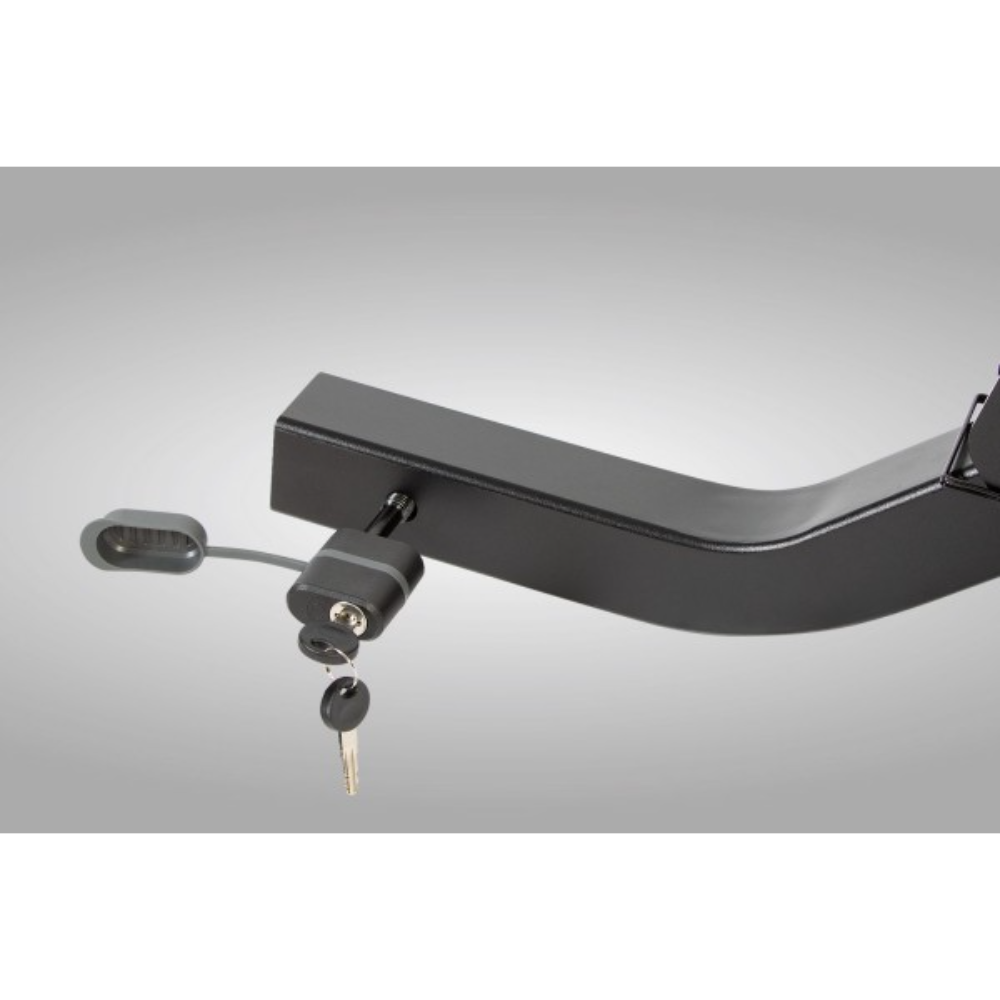

- Lock to hitch
- Lock bikes
- Max tire size 3.25"
- For 2" hitch
- XP R18-904-4 compliant
- Not for RV, Trailers, or special vehicles
SPECIFICATIONS
CAPACITY:
4 bikes
FITS:
2"
WEIGHT:
18kg (39.6lbs)
MAX LOAD:
60kg (132lbs)
BIKE WEIGHT:
Max 20kg (44lbs)
LOCKS:
Rack and bikes
DIMENSIONS:
88cm wide x 83cm deep
