DESCRIPTION

PRAISE THE LIGHT

Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top.

The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff. Welcome the ultimate climbing machine!

DOMINATE THE CLIMBS

Achieving Orca´s light weight required many marginal gains, focusing on the details and using the best materials across the range. Considering the bike as a package means working with component and wheel designers right from the start to optimize stiffness and weight.

RIGID IN ALL THE RIGHT PLACES

But having the lightest bike is worth nothing if it isn’t stiff and efficient. When we designed Orca, we started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then we designed Orca to be as light as possible without compromising that number.

THE FEEL OF THE FREEDOM

There is indeed just something special about the feel of a lightweight bike. We love the instant acceleration when you stamp on the pedals and the responsive, agile handling as you carve through the turns.

NO TRADE-OFFS

Our clever frame design means that stiff doesn't have to be uncomfortable. Rounder frame sections help reduce vibrations, saving energy on longer rides and offering you an advantage on that final climb. Wider clearance allows for tires of up to 32mm- maximizing traction and compliance.

PERFORMANCE DESIGN

Orca is built on our understanding of performance and design, reflecting our belief that bikes should look great and ride better. Orca’s minimal, timeless lines give it its distinctive style and cover some very modern technology.

REGISTER FOR YOUR WARRANTY AND BENEFITS

LIFETIME WARRANTY

We offer a lifetime warranty on your bike frame once the legal warranty period has expired.

ACCIDENT POLICY

If your bike cracks or breaks due to external factors, we’ll provide you with a discount for a similar new frame.

EXCLUSIVE BENEFITS

You get access to exclusive contests and prizes and have priority access to products and promotions.

WHAT MAKES ORCA UNIQUE

PURE LIGHT

The most efficient Aero bikes can never be truly lightweight and in the same way the lightest bikes can never be super aero. Trying to make a tool do many different jobs often results in something that isn’t good at anything.

When the gradient of the climb means that your speed drops below around 15kmph, gravity starts to affect your ride more than air resistance. The gradient at which this occurs depends on each rider. Here a lightweight bike offers clear advantages.

FRAME WEIGHT

OMX 745 g

OMR 1030 g

Our frame weights are an average of several production frames, randomly selected.

Only by tightly controlling every process can you consistently reduce weight.

COATING / PAINT

15g / 25g

HARDWARE

40G

BIKE WEIGHT

M10i LTD - 6.7kg

SO HOW DID WE ACHIEVE THAT?

MINIMAL DESIGN

As well as looking great, the minimalist design of the seat clamp and derailleur hangers save weight. It is another win-win.

FOCUS ON THE SHAPE

Any corner on a frame gives a space where excess epoxy can gather. Carefully designing the tube intersections to remove these sharp edges reduces the places excess epoxy can gather and means we reduce weight with no disadvantages.

REMOVE OVERLAPS

Our top-level OMX frame has fewer pieces of carbon, meaning fewer overlaps and less weight. It takes much more effort to lay out the carbon, but the result is a saving of almost 300g with no change in the rigidity.

THE COMPLETE BIKE

A modern bike needs to work together as a package. This allows us to design a complete bike, balancing weight and saving grams.

NOT A GRAM WASTED

Reducing weight on a bike is all about taking care of the details. The lighter the frame gets, the more complicated it becomes to remove more weight without compromising anything. Orca's journey to lightness was about obsessing over the details.

We use lightweight components from OC and OQUO, designed to work together.

OQUO RP35-LTD WHEELSET 1370G

HP11 HANDLEBAR 190G

STIFFNESS

RIGID IN ALL THE RIGHT PLACES

It is possible to make very light bikes; however, if you lose efficiency due to a lack of rigidity, then it makes no sense. When we designed Orca, we started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then we designed Orca to be as light as possible without compromising that number.

SIZE TUNED STIFFNESS

It is possible to make very light bikes; however, if you lose efficiency due to a lack of rigidity, then it makes no sense. When we designed Orca, we started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then we designed Orca to be as light as possible without compromising that number.

POWERSPINE

The lower spine of the frame handles the large majority of torsional and lateral loads. The headtube, downtube and chainstays resist twisting and transmit power to the rear wheel.

FEEL

INSTANT RESPONSE

The feel of a lightweight bike is unmistakable, that instant response and the feeling of acceleration on every pedal stroke. The lack of inertia means an agile, responsive ride as you carve through the corners and accelerate out the other side.

COMPLIANT BUT EFFICIENT

Slim, round frame profiles offer more compliance, and the lack of vibration on less-than-perfect roads adds to the effortless feeling of riding Orca. Of course, we need to maintain pedaling efficiency, and their Powerspine maximizes rigidity and resists pedaling forces.

VERSATILE TIRE CLEARANCE

With clearance for 32c tires, Orca acknowledges that speed can also be comfortable. Modern road riders have discovered the advantages of bigger tires on rougher surfaces.

BALANCED HANDLING

For a high-performance bike, one of the most important points to consider is that the bike must be easy to ride. Going fast requires precise control over the bike, and here, geometry plays a key role.

Shorter Wheelbase is more Responsive

Size-Specific Fork Trail Gives improved Control

Racing Ergonomics = More Watts

AND WHAT ABOUT AERO?

Designing a lightweight bike means that when we have to decide between weight and aero, we choose the lightest solution. That doesn’t mean that Orca isn’t efficient on the flat, and features such as the clean junctions, hidden seat clamp, internal cables, and efficient geometry help it slip through the air.

SPECIFICATIONS

FRAMES

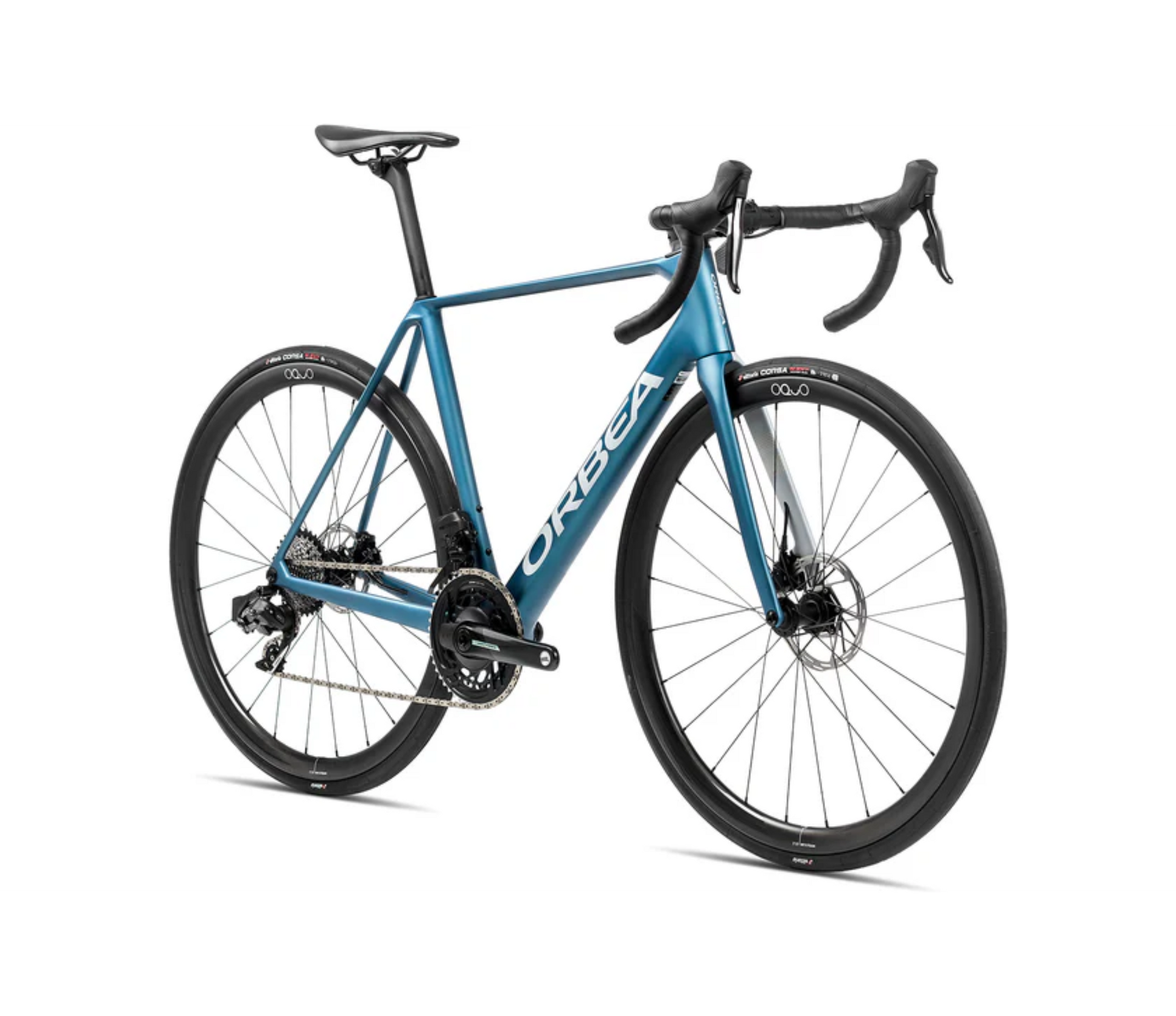

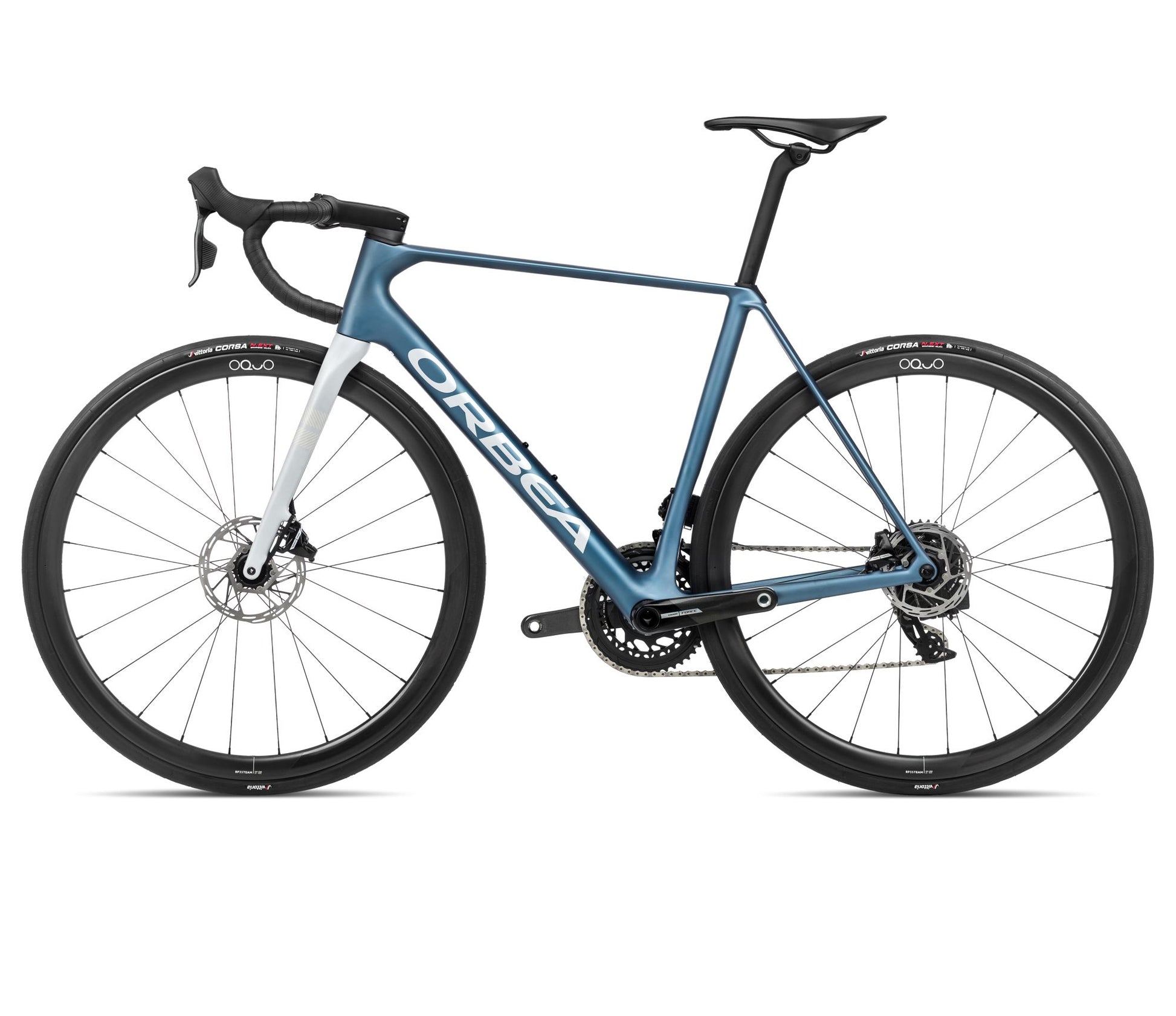

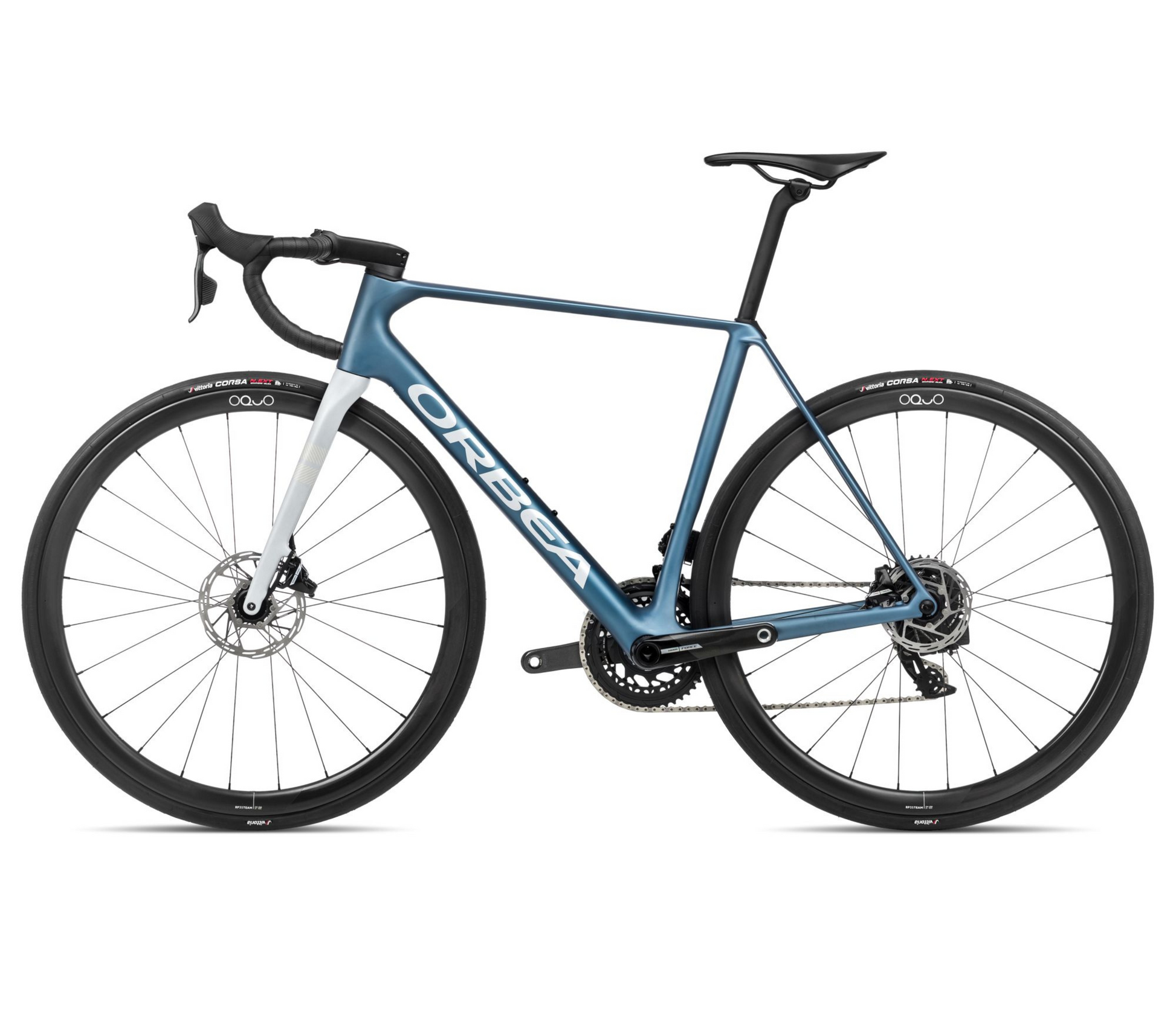

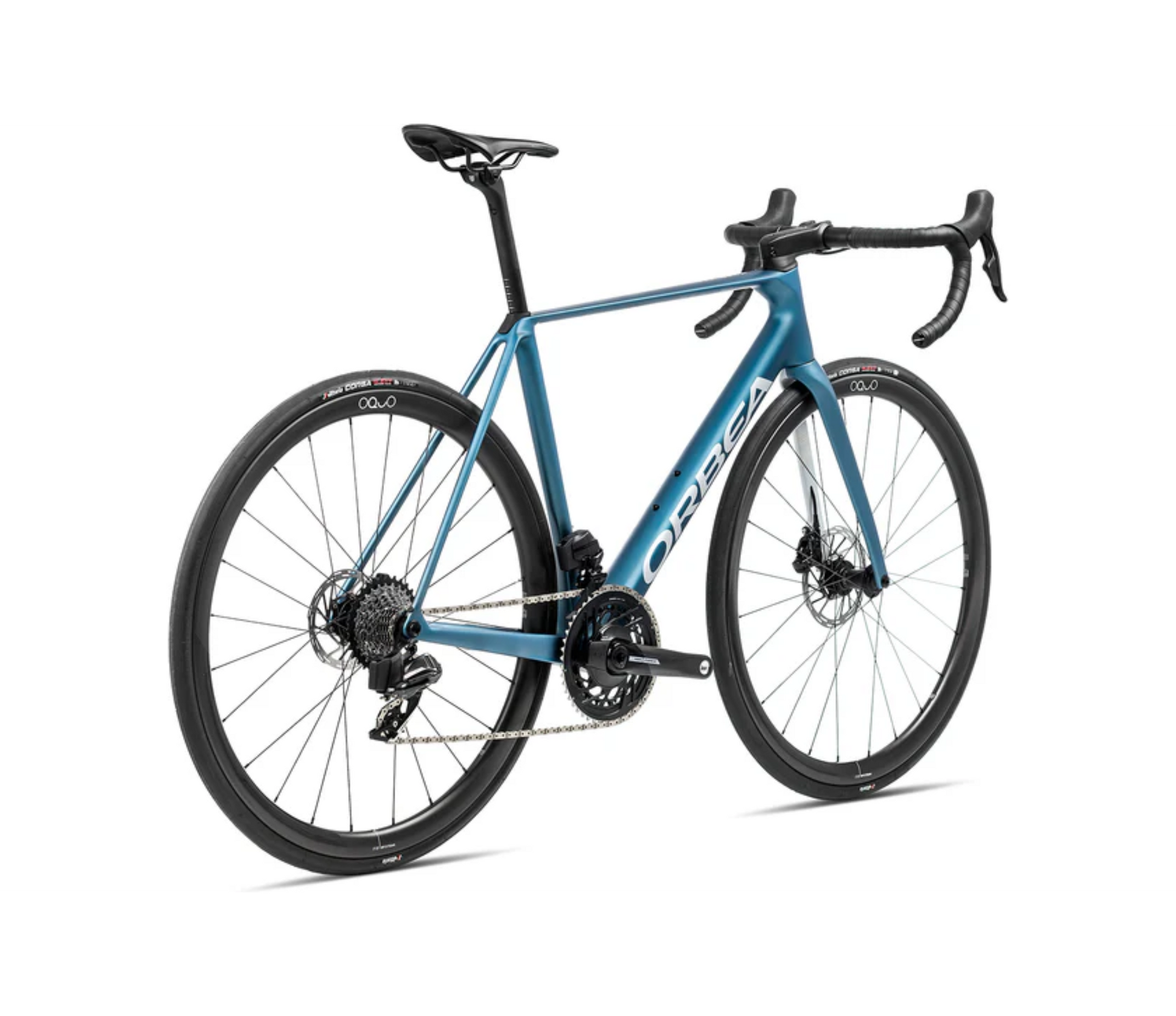

Frame - Orbea Orca carbon OMR 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing

Fork - Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

Headset - FSA 1-1/2" Integrated Aluminium Cup

DRIVETRAIN

Crankset - SRAM Force AXS Power Meter Dub 35x48t

Shifters - SRAM Force AXS

Cassette - SRAM XG-1270 10-33t 12-Speed

Rear derailleur - SRAM Force AXS 12s

Front derailleur - SRAM Force eTAP AXS

Chain - SRAM Force 12-Speed

COCKPIT

Handlebar - OC Road Performance RP21 Alu SL, Reach 80, Drop 125

Stem - OC Road Performance RP10, -8º

BRAKES

Brakes - SRAM Force AXS

WHEELS

Wheels - Oquo Road Performance RP35TEAM

Tyres - Vittoria Corsa N.Ext G2.0 Foldable 700x28c

Front Wheel Axle - Orbea Thru Axle 12x100mm M12x2 P1 Hollow

Rear Wheel Axle - Orbea Thru Axle 12x142mm M12x2 P1 Hollow

COMPONENTS

Seatpost - OC Performance XP10-S Carbon, 27.2mm, Setback 20

Saddle - Fizik Vento Antares R7 Alloy Rail 140mm

ACCESSORIES

Handlebar Tape - Orbea Anti-Slippery/Shock Proof

SIZE GUIDE

Size	Height (cm)
47	155-160
49	160-166
51	167-172
53	173-179
55	180-185
57	186-191
60	192-207
