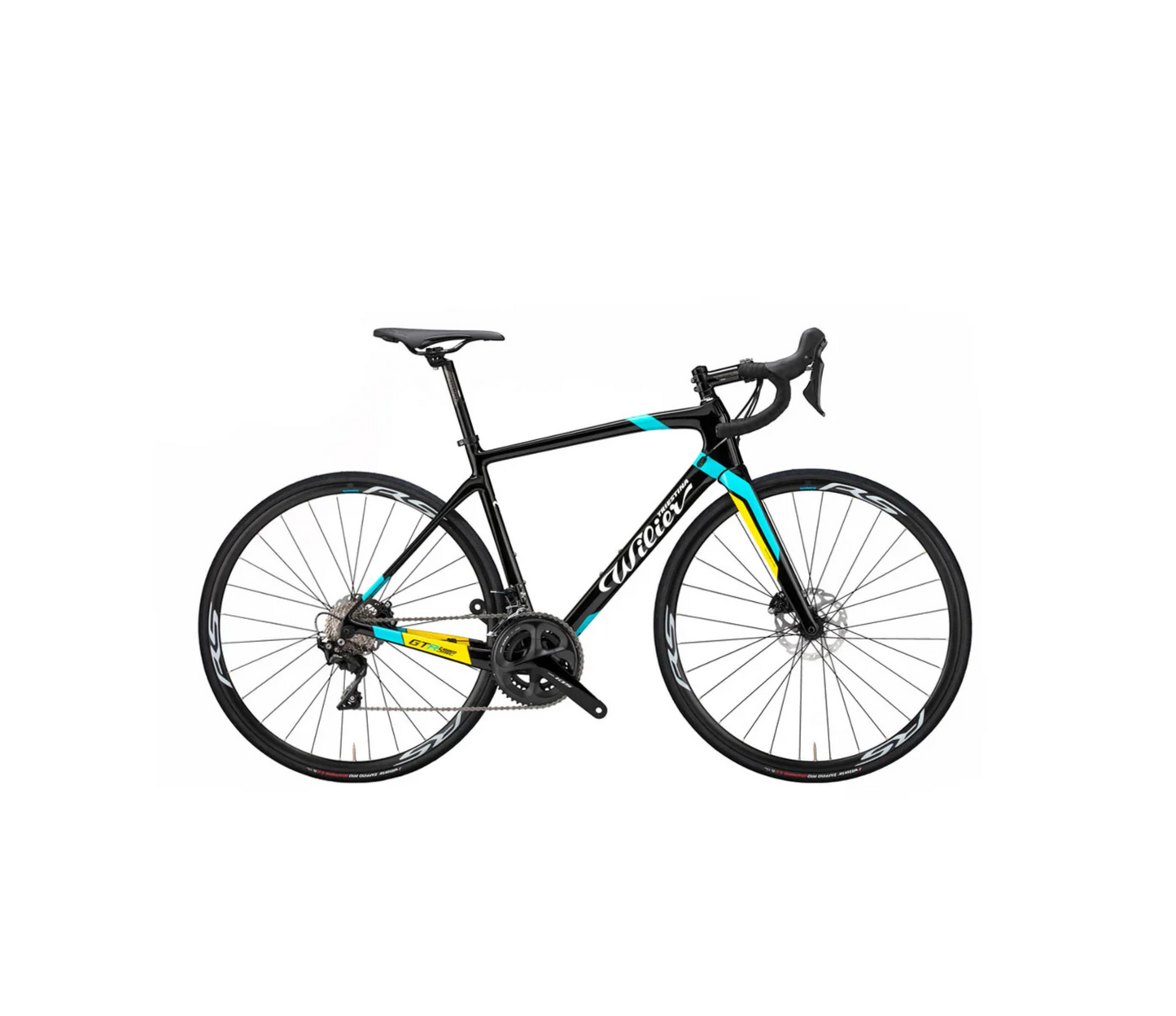

WILIER GTR TEAM DISC ULTEG RS 171 ASTANA L
WILIER GTR TEAM DISC ULTEG RS 171 ASTANA L
مخزون منخفض: 1 متبقية
لم نتمكن من تحميل توفر الاستلام
DESCRIPTION
GTR TEAM DISC ASTANA; ITALIAN TECHNOLOGY TAKING IT TO THE NEXT EVOLUTION
GTR TEAM DISC is a special version of GTR TEAM available with smooth shifting Campagnolo Chorus groupset and Flat Mount disc brakes. The rear triangle, in addition to being designed asymmetrically, is designed to accommodate 28mm tires, in line with the latest market trends that see strong growth in the disc gravel bike sector. GTR TEAM DISC can also be used in UCI races for the coming seasons.
TECHNICAL SPECS
| Drivetrain |
CAMPAGNOLO CHORUS |
| Wheelset |
CAMPAGNOLO SCIROCCO |
| Frame |
GTR TEAM DISC - CARBON MONOCOQUE 46TON |
| Fork |
GTR TEAM DISC - CARBON MONOCOQUE 46TON |
| Rear Derailleur |
CAMPAGNOLO CHORUS RD20-CH12 |
| Front Derailleur |
CAMPAGNOLO CHORUS FD20-CH12B |
| Shifters |
CAMPAGNOLO CHORUS ERGOPOWER SHIFT |
| Cassette |
CAMPAGNOLO CHORUS CS20-CH1212 11-32T |
| Chain |
CAMPAGNOLO CHORUS CN20-CH1214 114 LINK |
| Crankset |
CAMPAGNOLO CHORUS UT TI CARBON FC20-CH12 50-34T |
| Brakes |
CAMPAGNOLO BRAKE SYSTEM EP20-CHD12 |
| Saddle |
PROLOGO KAPPA |
| Stem |
FSA OS-168 - CUSTOM WILIER |
| Handlebar |
FSA OMEGA |
| Seatmast | FSA GOSSAMER SB20 |
| Headset | RITCHEY COMP TAPERED PRD18228 |
| Tires | VITTORIA ZAFFIRO PRO 4 700X25 |
| Weight |
8,7 Kg +/-5% |
| Fork Weight | 380 g +/- 5% |
| Frame Weight | 1170 g +/- 5% |
*subject to change.
We are constantly working on improving our bike range, which sometimes results in a component being replaced by a newer/better version. As a consequence, it is possible that some of the bikes of this range have more up to date components than reflected in this table.
GEOMETRY
| - | XS | S | M | L | XL | 2XL |
|---|---|---|---|---|---|---|
| Reach (mm) | 373 | 378 | 383 | 388 | 394 | 399 |
| Stack (mm) | 515 | 531 | 548 | 566 | 583 | 602 |
| H (cm) | 45,0 | 48,0 | 50,0 | 52,0 | 55,0 | 58,0 |
| C/C (cm) | 39,5 | 42,5 | 44,5 | 46,5 | 49,5 | 52,5 |
| L (cm) | 51,3 | 52,7 | 54,0 | 55,7 | 57,2 | 58,9 |
| A (°) | 75,0 | 74,5 | 74,0 | 73,5 | 73,0 | 72,5 |
| H1 (cm) | 11,5 | 13 | 14,8 | 16,6 | 18,4 | 20,3 |
| L1 (cm) | 40,6 | 40,6 | 40,8 | 40,8 | 41 | 41,1 |
| A1 (°) | 71 |
71,5 | 72 |
72,5 |
72 | 72,5 |
