Orbea (R302) Vibe H30 Eq 20mph

Orbea (R302) Vibe H30 Eq 20mph

Dhs. 13,495.00
Dhs. 13,495.00
Liquid error (snippets/price line 121): divided by 0% OFF نفذ
شامل الضريبة.

إنتهى من المخزن

Color: Metallic Green
Size

DESCRIPTION

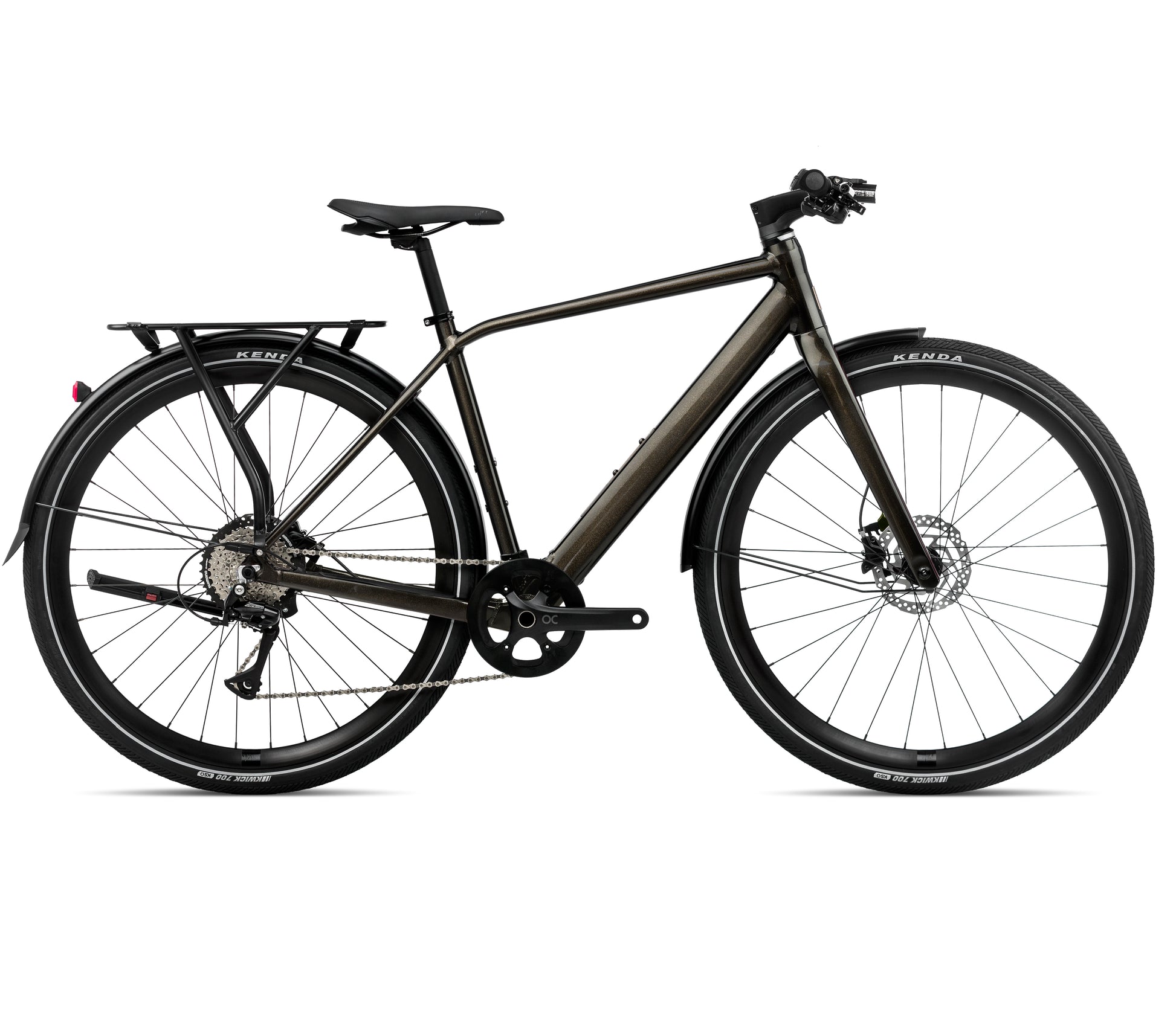

The VIBE H30 EQ is a leisure , sporty and urban electric bike from the Orbea 2024 range. It has integrated cabling, luggage racks, mudguards as well as front and rear lighting and a kickstand for greater comfort and safety . Its wheel axle passes through its carbon fork for greater rigidity . This model has an 8-speed Shimano single-chainring transmission for ease of use. It is equipped with an EBM Mahle motor hub X35 Plus motor with an integrated 248Wh battery. Its three levels of assistance can be changed via the IWoc Trio left thumb button . From the Orbea 2024 range, this VIBE H30 EQ electric bike   is easy to handle and versatile , it will be ideal for commuting in an urban environment or weekend outings in the countryside!

SPECIFICATIONS

Frameset

Frame

Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible

Fork

Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.

Steerer tube

Acros Alloy 1-1/2" Internal Cable Routing

Ebike

Battery

Mahle 36V/6.9A 248Wh ANT+

RANGE EXTENDER

N/A

Motor

Mahle motor hub X35 Plus

Display

N/A

CHARGER

Mahle X35

Remote

Mahle iWoc TRIO

Drivetrain

Crankset

CR 0.1, Forged alloy, 42t, w/Chainguard

Shifters

Shimano SL-M315

Cassette

Shimano CS-HG400 11-40t 8-Speed

Rear derailleur

Shimano Acera M3020

Chain

KMC X8

Cockpit

Handlebar

Alloy ,31.8mm, Rise 12mm, 700mm

Stem

Alloy forged, -6º, ICR

Brakes

Brakes

Shimano MT200 Hydraulic Disc

Brakes Configuration



Wheels

Wheels

Alloy, Tubeless, 700c, 21c, 32H

Tyres

Kenda K1052 700x45C Reflective type+puncture protection

Front Wheel Axle

Orbea Thru Axle 12x100mm M12x2 P1 Hollow

Accessories

Pedals

VP-537 Black

Rear carrier

Orbea Vibe rear luggage carrier (Max:15Kg)

Carrier accessories

N/A

Mudguard

CURANA Apollo 55mm

Front Position Light

Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.

Front light

Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens

Rear light

Lezyne FENDER STVZO

Quick stand

MASSLOAD rear

Bell

Knog OI Classic

Components

Seatpost

Alloy, 27.2mm, Setback 20

Saddle

Selle Royal Lift 1215 URN 278x145mm


We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

GEOMETRY

Size S M L XL
1 - SEAT TUBE (C-T) 455 490 530 575
2 - TOP TUBE (EFF) 507 530 547 571
3 - HEAD TUBE 109 140 175 210
4 - CHAINSTAY 435 435 435 435
5 - BB HEIGHT 280 280 280 280
6 - BB DROP 76 76 76 76
7 - WHEELBASE 1026 1048 1065 1091
8 - HEAD ANGLE 70º 70.5º 71.5º 72º
9 - SEAT ANGLE 75º 74.5º 74º 74º
10 - STANDOVER 775 809 842 881
11 - REACH 380 395 410 430
12 - STACK 546 580 615 650
13 - FORK LENGTH 410 410 410 410
14 - RAKE 44 44 44 44
15 - WHEEL SIZE 712 712 712 712
