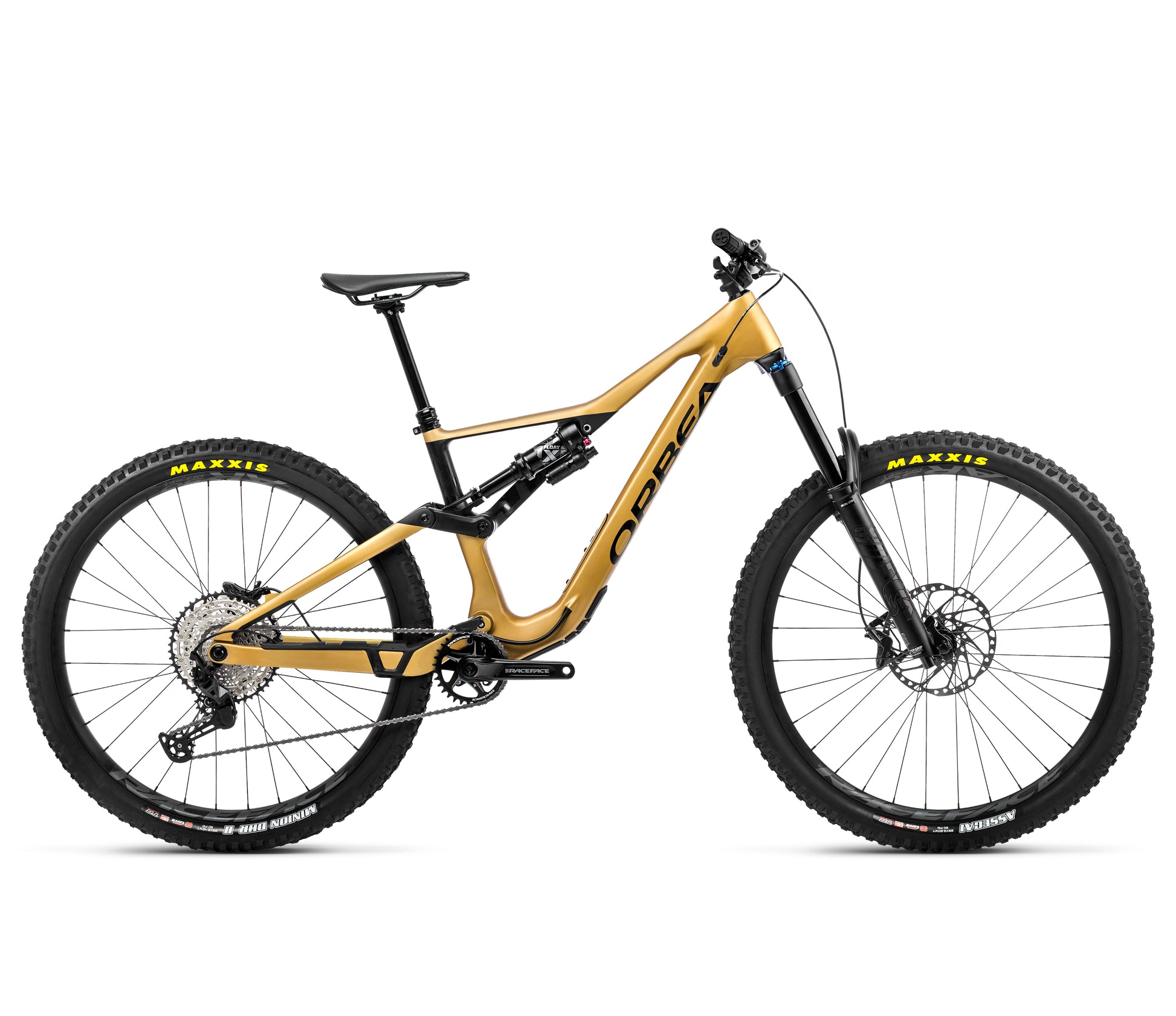

DESCRIPTION

Rallon was forged on the racecourse, but is always ready for fun outside of the tape and loves fast laps with friends, high-5's and near misses. Forget limits, forget distractions, just focus on fast(er).

INTENDED USE: ENDURO, PARK

TRAVEL: 170MM FRONT  |  167MM REAR

WHEEL SIZE: 29" FRONT | 27.5"/29" REAR

Enduro racing has evolved and the Rallon has evolved too. Longer and slacker than ever, Rallon also has more standover to give more choice over frame sizing.

When things get steep you want to drop your saddle deep out of the way and just focus on fast! More space to move your body means more control, and more control means more speed. But low saddles mean long droppers which need short seat tubes. The trick is achieving this without affecting either seat post insertion or frame geometry.

PRECISION TRACKING IS KEY FOR FEEL AND GRIP

It is possible to have a frame which is too stiff to track the terrain efficiently. Interested in sporting a mullet with your new Rallon? Focus on fast with 29” or focus on fun with 27.5”; whatever you choose, the Rallon has you covered.

REGISTER FOR YOUR WARRANTY AND BENEFITS

LIFETIME WARRANTY

We offer a lifetime warranty on your bike frame once the legal warranty period has expired.

ACCIDENT POLICY

If your bike cracks or breaks due to external factors, we’ll provide you with a discount for a similar new frame.

EXCLUSIVE BENEFITS

You get access to exclusive contests and prizes and have priority access to products and promotions.

WHAT MAKES RALLON UNIQUE

GEOMETRY

Longer And Slacker Than Ever
Rallon also has more standover to work with longer dropper posts. With two suspension positions and two choices of rear wheel size, Rallon is also more adaptable than ever before.

STEEP AND DEEP

With its steep seat tube and deep insertion, Rallon has one of the lowest standovers around, meaning lots of space for your choice of long travel dropper posts. Get that saddle right out of the way when things get steep and deep; long travel droppers are the only way.

EVOLVED DESIGN

Totally revised suspension kinematics give a more progressive suspension curve which, combined with 167mm of rear travel, is hard to beat; fast and agile in the turns with plenty of control and traction in the rough. Add the beefy Fox 38 fork and Rallon is ready for whatever you have in mind.

LOW STANDOVER

Steep and deep means more control and more choice on frame sizing.

HEAD ANGLE

63.5 or 64º is slack enough for the toughest courses without compromising agility.

BB DROP

An extra 3mm drop gives great stability and you will be amazed at how it corners.

REACH

Increased reach really helps to increase stability when descending at speed.

CHAINSTAYS

5mm longer for increased stability at speed without compromising maneuverability.

STEEP SEAT ANGLE

Great pedaling position and works well with long travel droppers.

ADJUSTABLE

Low/Slack or Lower/Slacker

MULLET COMPATIBILITY

29" or 27.5" Rear Wheel.

MORE SIZING OPTIONS

Rallon is available in four sizes, S, M, L, and XL. However, with one of the shortest seat posts around, you can pick between sizes to get your preferred reach. Rallon is designed to work with a long travel dropper post, so choose a larger size to maximize stability, or go with a smaller size for a more playful Rallon.

SPECIFICATIONS

FRAMESET

Frame: Orbea Monocoque Race Carbon. Advanced Dynamics 167mm suspension technology. 29" wheels. Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05

Shock: Fox FLOAT X Performance 2-Position Evol LV custom tune 230x62.5mm

Fork: Fox 38 Float Performance 170 Grip 3-Position QR15x110

Direction: Acros Alloy 1-1/8 - 1-1/2" Integrated

DRIVETRAIN

Crankset: Race Face Aeffect 32t

Shifters: Shimano SLX M7100 I-Spec EV

Cassette: Shimano CS-M7100 10-51t 12-Speed

Rear derailleur: Shimano SLX M7100 SGS Shadow Plus

Chain: Shimano M6100

Chainguide: e*thirteen CL55 30-36t black

COCKPIT

Handlebar: OC Mountain Control MC30, Rise20, Width 800

Stem: Alloy 3D forged, 35mm interface, -7º

BRAKES

Brakes: Shimano M6120 Hydraulic Disc

WHEELS

Wheels: Race Face AR 30c Tubeless Ready

Tyres: Maxxis Assegai 2.50" WT FB 120 TPI 3C Maxx Terra EXO+ TR

Rear Tyre: Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C Maxx Terra Exo+ TR

COMPONENTS

Seatpost: OC Mountain Control MC21, 31.6mm, Dropper

Seatpost Lever: Shimano SL-MT500 I-Spec EV

Saddle: ERGON SM Enduro

Grips: OC Lock On

ACCESSORIES

Storage: Accessories Containers

Tools: OC Rear lever (Hex 6 & valve core removal

SIZE GUIDE

Size	Height (cm)
S	150-170
M	160-180
L	170-190
XL	180-200
