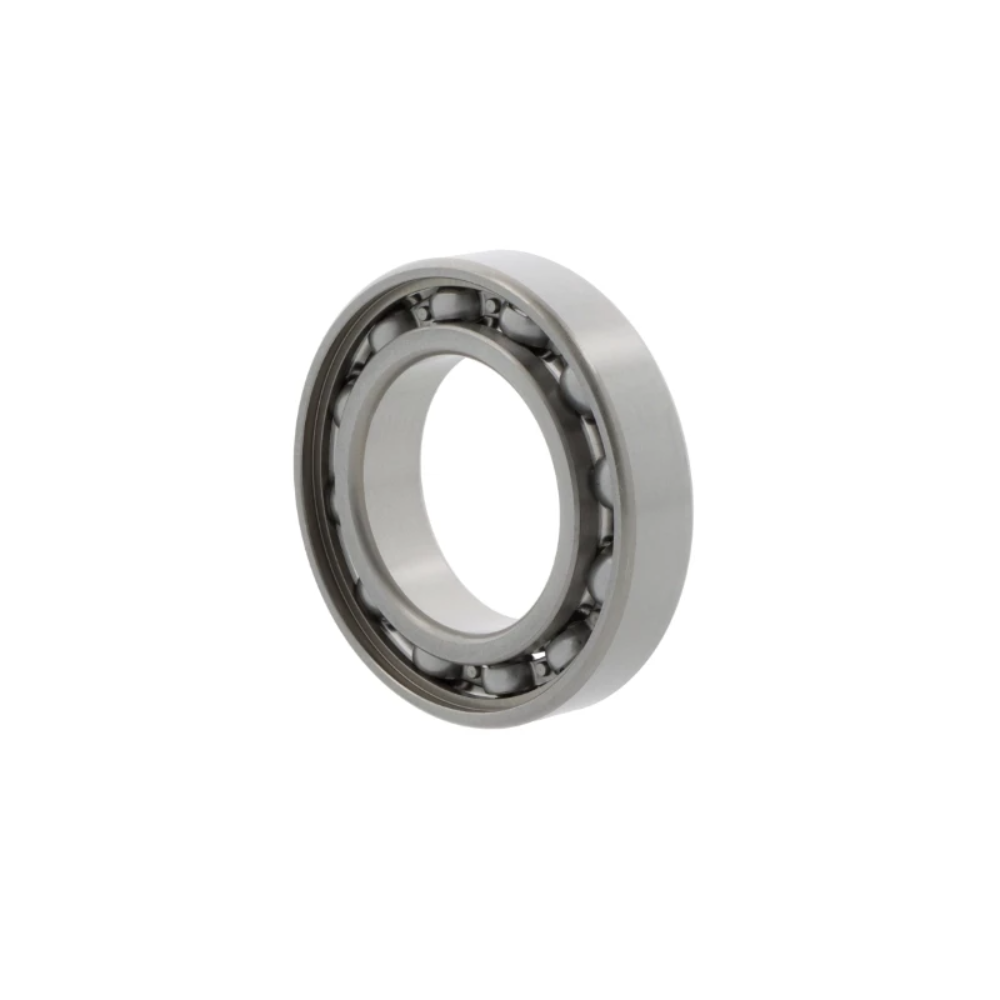

محمل كروي NSK 6903-DDCM

محمل كروي NSK 6903-DDCM

السعر العادي Dhs. 50.00
السعر العادي سعر البيع Dhs. 50.00
Liquid error (snippets/price line 121): divided by 0% OFF نفذ
شامل الضريبة.

مخزون منخفض: 4 متبقية

DESCRIPTION

NSK is a Japanese manufacturer of high-quality bearings and linear guides. It has been on the market since 1916 and is today one of the leading players in the market.

NSK offers a wide variety of bearings from ball, roller, linear... In our experience, their ball bearings are the best on the market. In general, their bearings are known for their high quality and reliability and are therefore used in precision machines and devices with the most demanding conditions.

In addition to bearings, NSK also produces a wide range of linear guides and ball spindles, most of which are used in automation and mechanical engineering.

NSK has a wide-ranging global network of development, production and distribution centres around the world, which means that it is always close to customers.

SPECIFICATIONS

This 6903 ZZ bearing is a Shielded Thin Section Radial Ball Bearing with a standard radial internal clearance. The bearing's dimensions are 17x30x7.

Weight [kg] 0.0180
Inner diameter [mm] 17.000
Outer diameter [mm] 30.000
Width [mm] 7.000
Category Deep groove ball bearings
Seal None
Radial Clearance Normal
Bore Cylindrical bore
Special Nothing
Customs tariff no. 84821010
Brand NSK
Seal Without, open bearing
Temperature range -20°C / +120°C
Ball Rows Single row bearing
Outer ring Without groove/flange
Product type Deep groove ball bearings
Tolerance class P0/PN2 / ABEC 1
Rolling elements material Normal bearing steel
Material Normal bearing steel
Electrical current insulation Without
Cage type Sheet steel cage
Inner diameter [mm] 17
Outer diameter [mm] 30
Width [mm] 7
