DESCRIPTION

NEW BUZZYBEE H series offer convenient mounting, basic functions and compact storage. The rubber pad offers a good solution for carbon frames fitting as it does not apply pressure to the carbon tubes.

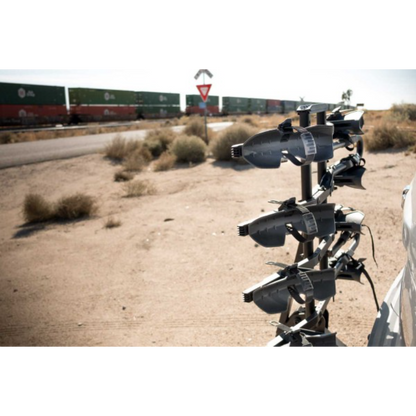

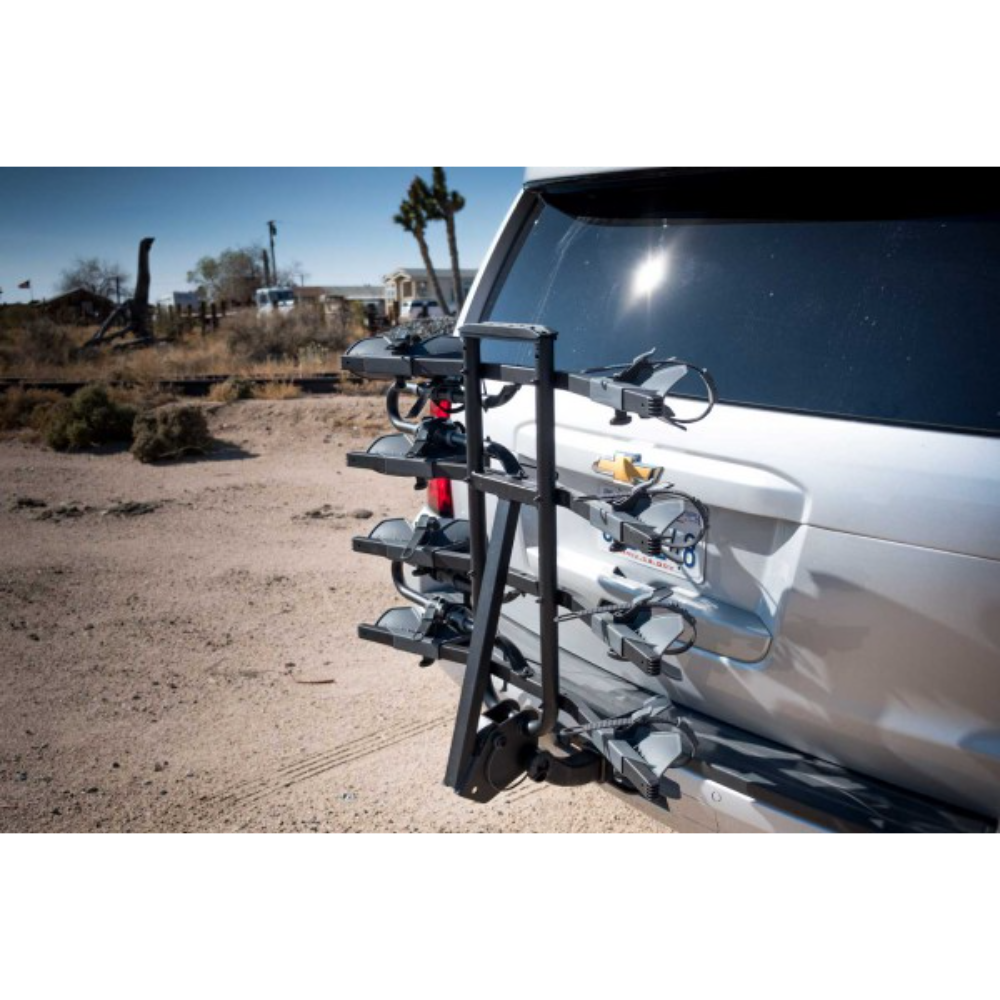

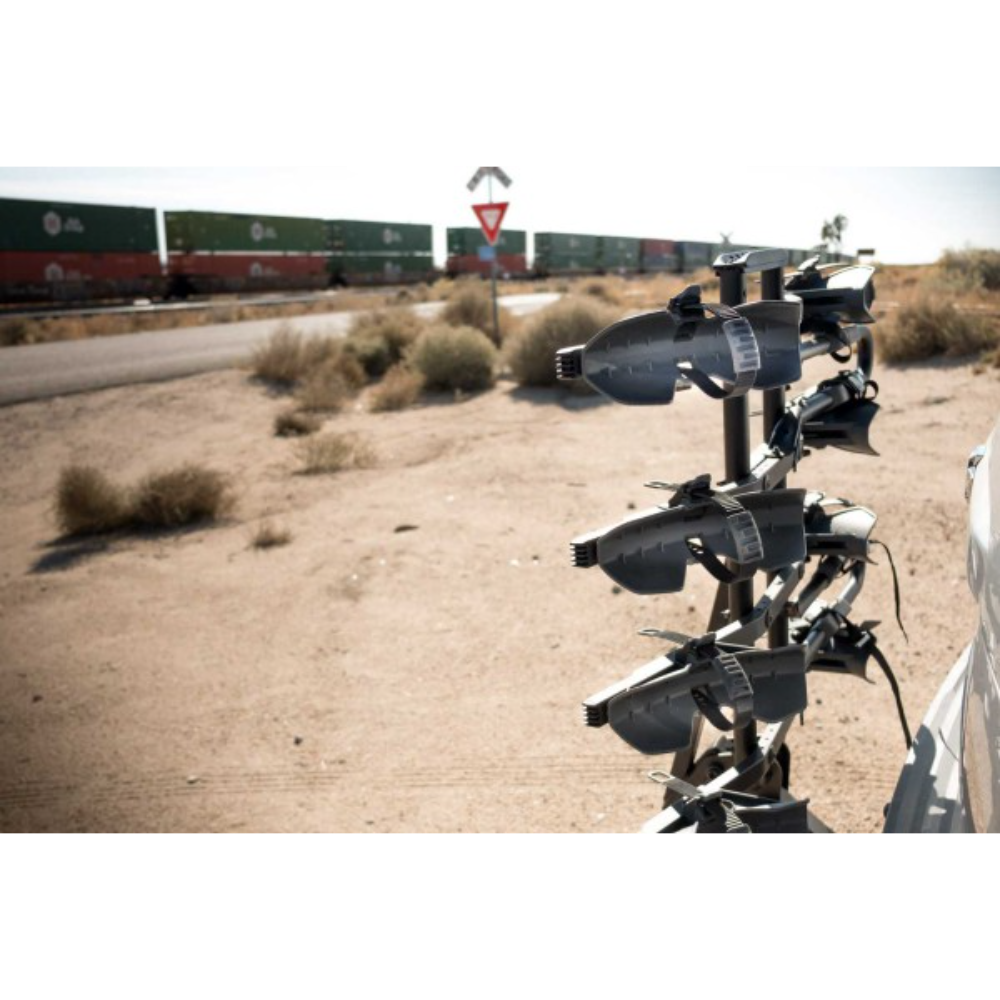

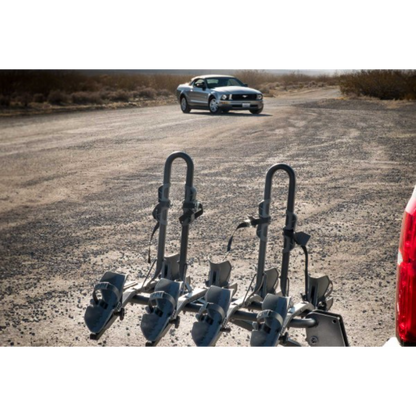

If you don’t need a bike rack with a tilting function to access the trunk, then the BUZZYBEE H is the best possible option on the market. The rack still folds up when not in use.

The BUZZYBEE H4 is a very simple design, strong, secure and the best value for your money.

Basic ergonomics

The BUZZYBEE H4 offers easy mounting and best value for a family rack

Key features of the BUZZYBEE H4

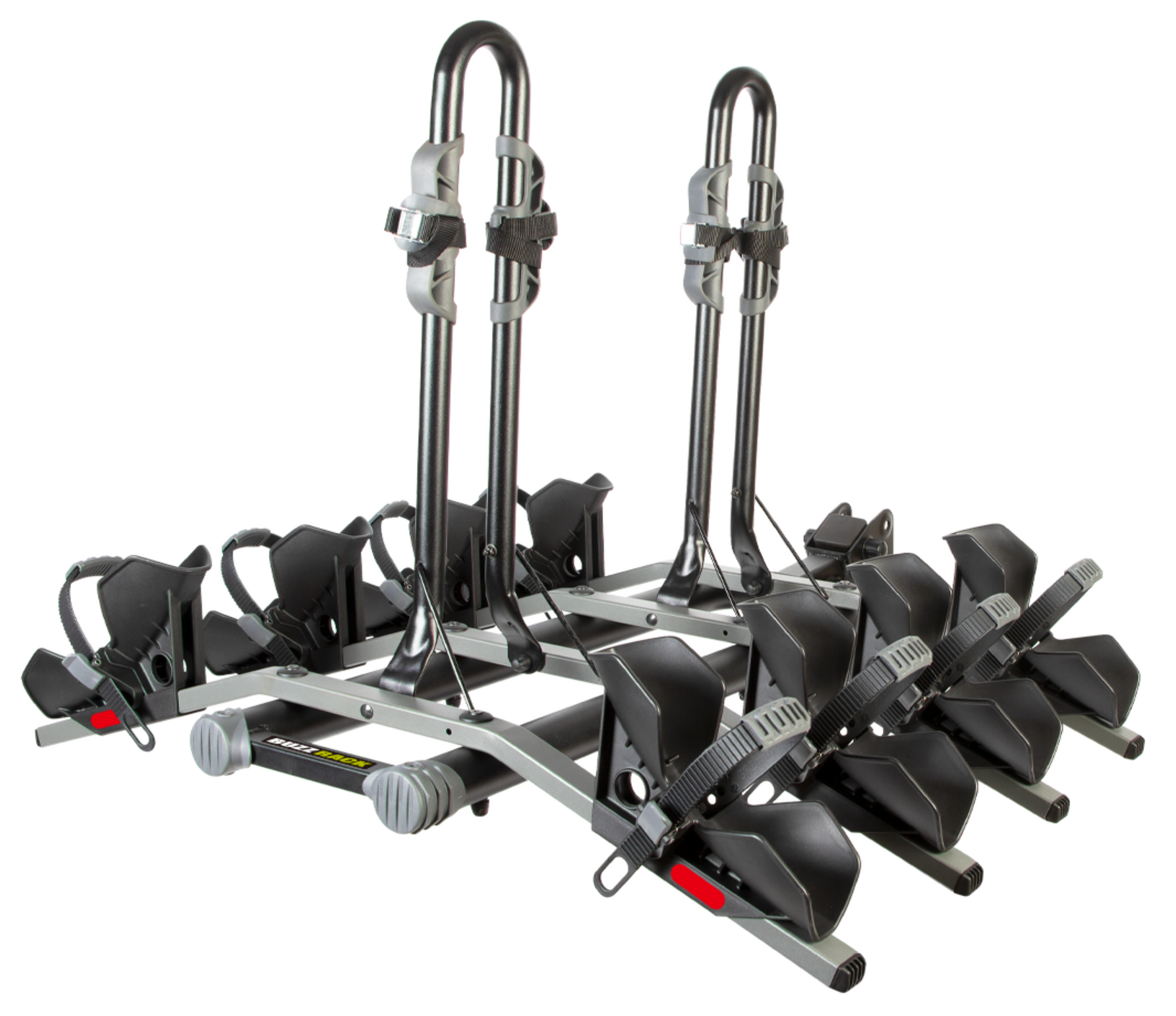

Assembly: Even though it is not assembled, BUZZYBEE H4 is very easy to put together: assemble the wheel support frame to the base using 8 screws slide in the plastic wheel supports, fit the rack to the hitch receiver using the supplied wrench and you are ready to go!

Other features and specifications:

Carrying bikes

• The wheel holders will accommodate most wheelbases (not tandem!), even small children’s bikes. Check technical data below

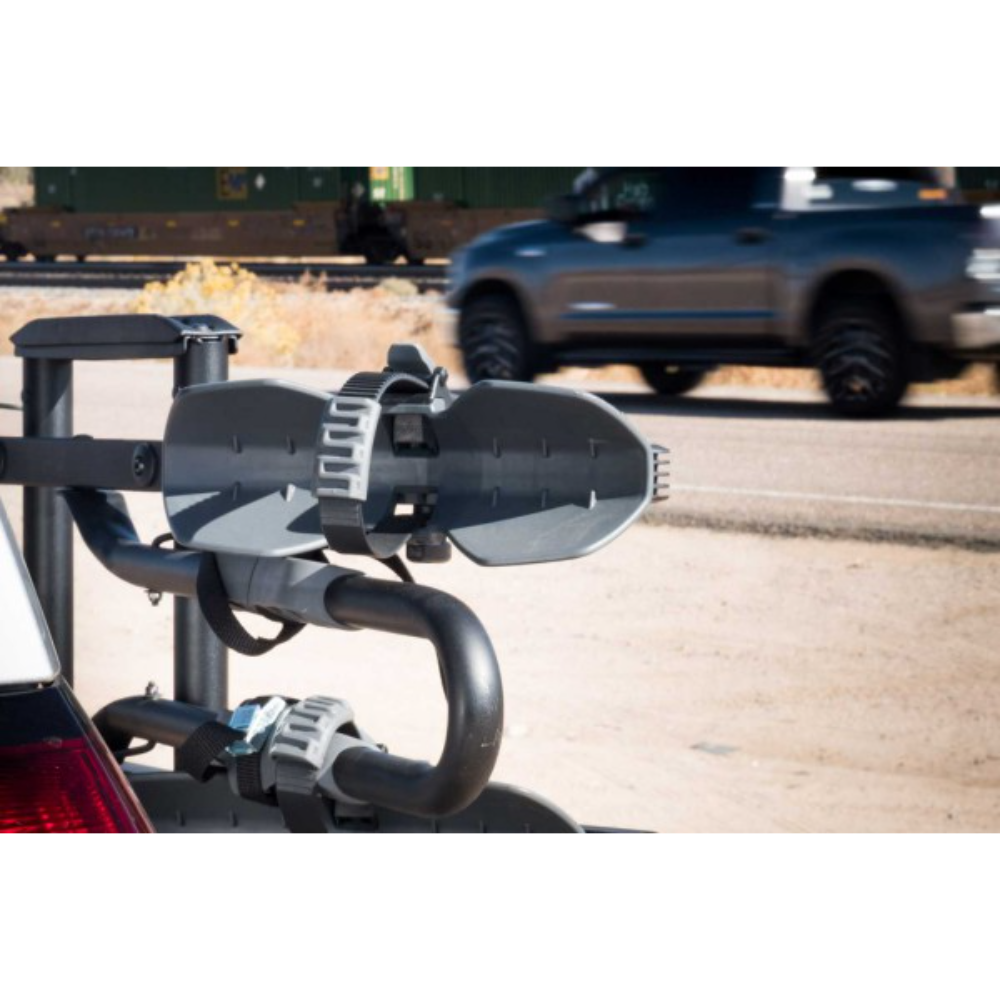

• The long rubber-padded wheel straps hold tyres up to 3.25” wide; pull on them to tighten, and use the quick release to loosen
• The BUZZYBEE H4 is entirely suitable for carbon frame bikes; the rubber bike frame pads and high resistance straps hold any type of tube firmly but gently.
• The maximum permitted load is 60kg (132lbs), with no bike weighing more than 20kg (44lbs)
• The down tube size is limited to 75mm diameter (3″); whatever bikes you have, always load the heaviest bikes nearest to the car

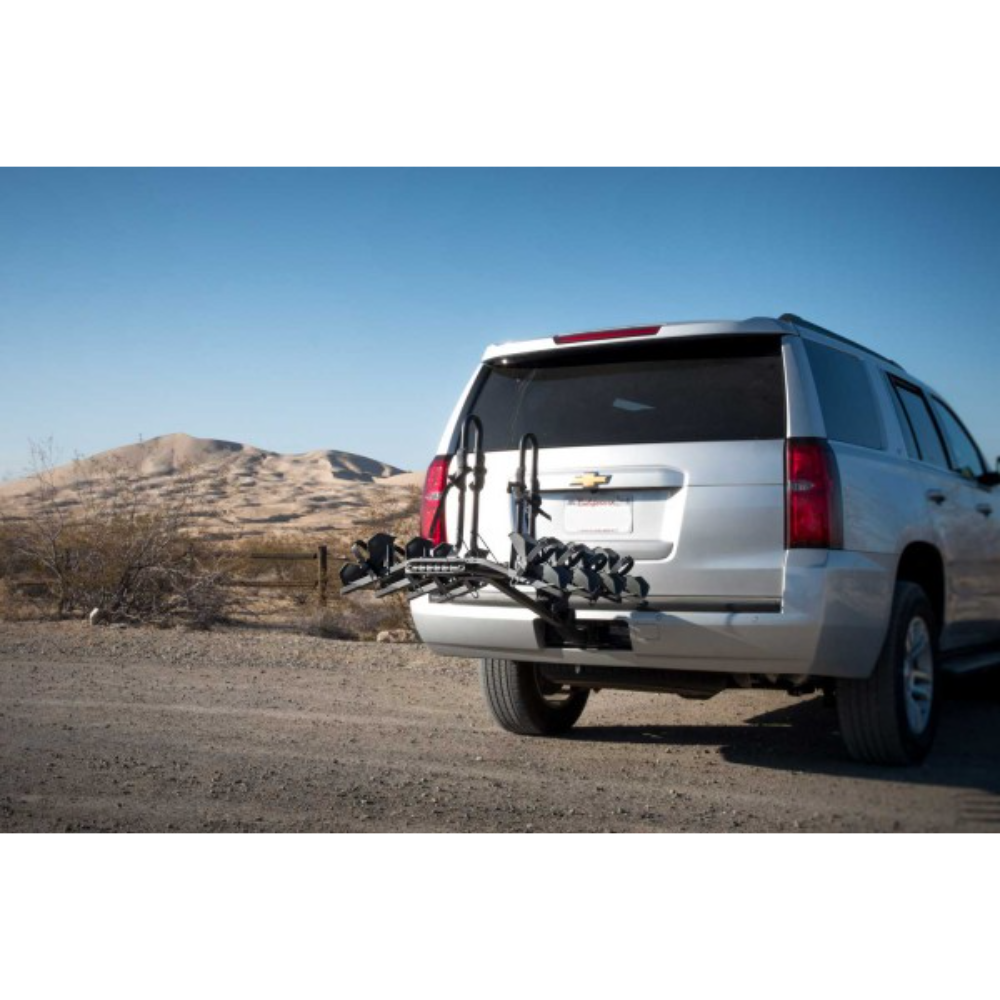

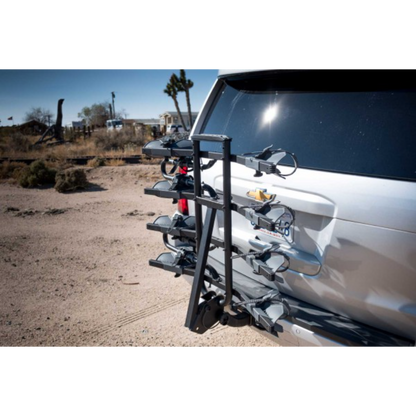

• The BUZZYBEE H4 sits high on the hitch, well clear of speed bumps and other hazards such as steep ferry ramps.
• Dimensions: 88cm wide x 123cm deep
• Weight: 17.4kg (38.3lbs)
• Reflective red stickers on the wheel supports
• The build quality – tube bending, welding, rust proofing, painting, component quality, is exemplary. The whole carrier looks and feels like the class act it is. All tools you might need are provided.
• All parts are replaceable if e.g. someone forgets that a tow bar carrier is fitted and reverses into a wall – which happens!
• Not suitable for trailers, campers, or RVs

FEATURES

• Max weight 60kg
• Max bike weight 20kg

• For 2" hitch receivers
• Max tire size 3.25"
• XP R18-904-4 compliant
• Not for RV, Trailers or special vehicles

SPECIFICATIONS

CAPACITY:

4 bikes

FITS:

2"

WEIGHT:

17.4kg (38.3lbs)

MAX LOAD:

60kg (132lbs)

BIKE WEIGHT:

Max 20kg (44lbs)

DIMENSIONS:

width x depth x height: 88 x 123 x 88 cm
